4.20 SPI Timing Requirements
For the SPI timing diagram, see Figure 4-3| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| tsu(ce) | Chip-select setup time | 30 | ns | |
| th(ce) | Chip-select hold time | 30 | ns | |
| tc(clk) | Clock cycle time | 67 | 100 | ns |
| tp(HIGH_ck) | Clock high typical pulse duration | 20 | ns | |
| tp(LOW_ck) | Clock low typical pulse duration | 20 | ns | |
| tsu(si) | Input data set up time, before clock active edge | 5 | ns | |
| th(si) | Input data hold time, after clock active edge | 5 | ns | |
| tdr | Data retention time | 15 | ns | |
| t(CE) | Time from CE going low to CE going high | 67 | ns | |

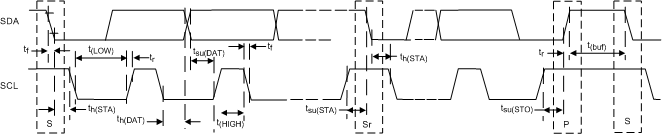

Figure 4-1 Serial Interface Timing Diagram for F/S Mode
A. The first rising edge of the SCL (HS) signal after the repeated START condition (Sr) and after each acknowledge bit.

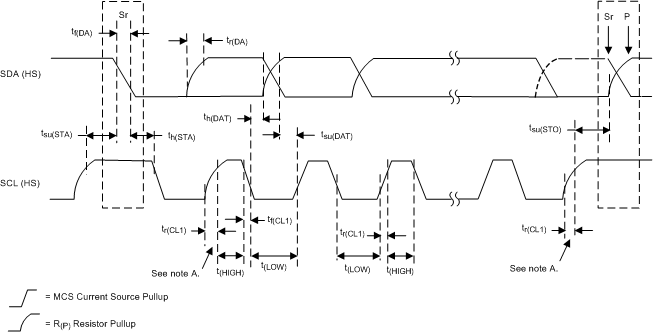

Figure 4-2 Serial Interface Timing Diagram For HS Mode

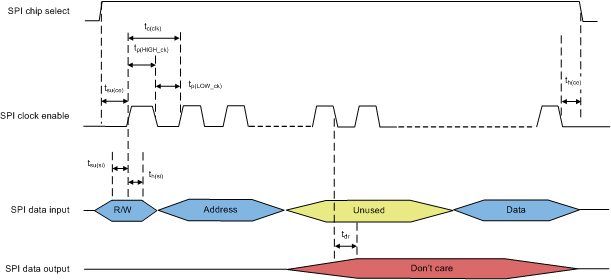

Figure 4-3 SPI Timing Diagram
