6.8 Typical Characteristics

All the following data are based on the mean value of the three lots samples, V_VBB = 13.5 V if not specified.

Figure 6-1 Transient Thermal Impedance

V_OUT = 0 V	V_EN = 0 V	V_{DIAG_EN} = 0 V
V_BB Varied

Figure 6-3 Output Leakage Current I_OUT,STBY vs Temperature

I_OUT = 0 A	V_EN = 0 V	V_{DIAG_EN} = 5 V
V_BB Varied

Figure 6-5 Diagnostic Current I_DIA vs Temperature

I_OUT = 1 A	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB Varied

Figure 6-7 R_DSON vs V_BB

R_OUT = 5 μH and 100 mΩ	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_DS = 3 V

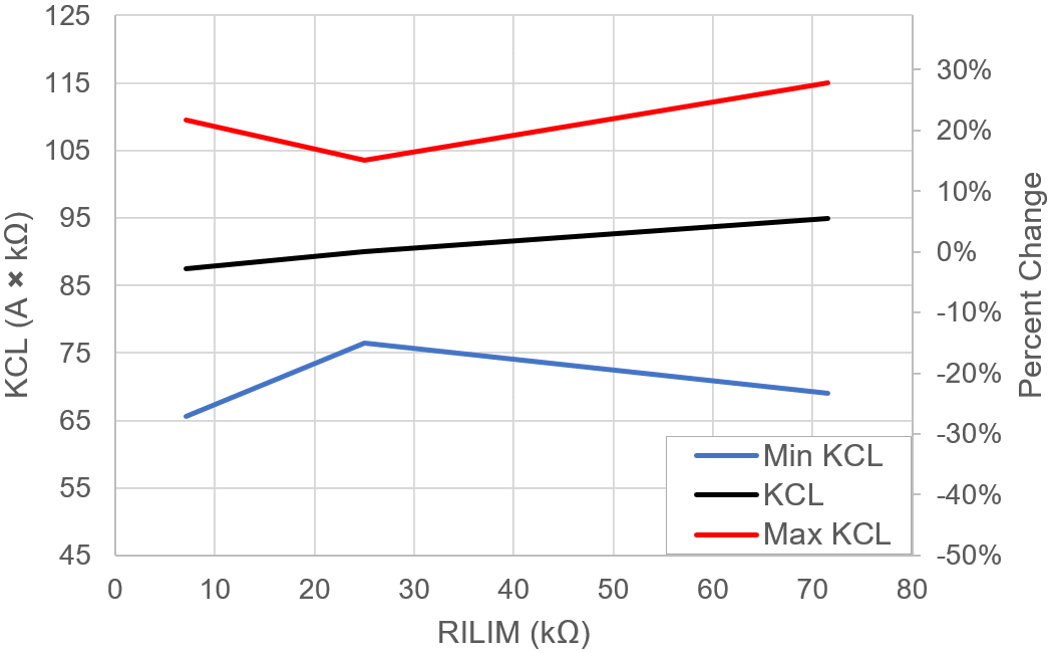

Figure 6-9 KCL vs RILIM

I_OUT = 1.5 A	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB varied	R_SNS = 1 kΩ

Figure 6-11 KSNS Error vs VBB

R_OUT = 5 μH and 100 mΩ	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB varied	R_SNS = 1 kΩ

Figure 6-13 VSNSFH (5 V) vs VBB

R_OUT = 10 Ω	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB varied	R_SNS = 1 kΩ

Figure 6-15 Turn-Off Time T_OFF vs Temperature

R_OUT = 10 Ω	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB varied	R_SNS = 1 kΩ

Figure 6-17 Falling Slew Rate SRF vs Temperature

R_OUT = 1 kΩ	V_EN = 3.3 to 0 V	V_{DIAG_EN} = 3.3 to 0 V
V_BB varied	R_SNS = 1 kΩ

Figure 6-19 V_IL vs Temperature

R_OUT = 10 Ω	V_EN = 5 to 0 V	V_{DIAG_EN} = 0 V
V_BB = 13.5 V	R_SNS = 1 kΩ

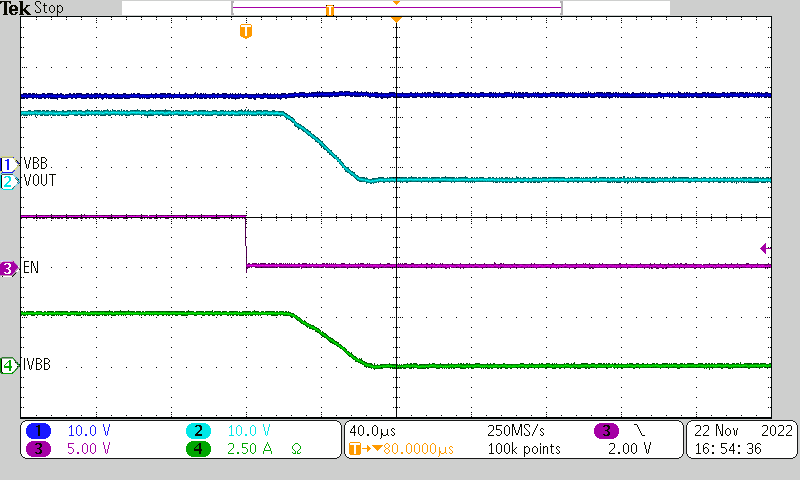

Figure 6-21 Turn-Off Time (t_OFF)

R_OUT = 5 μH and 100 mΩ	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB = 13.5 V	R_SNS = 1 kΩ	R_ILIM = 7.15 kΩ

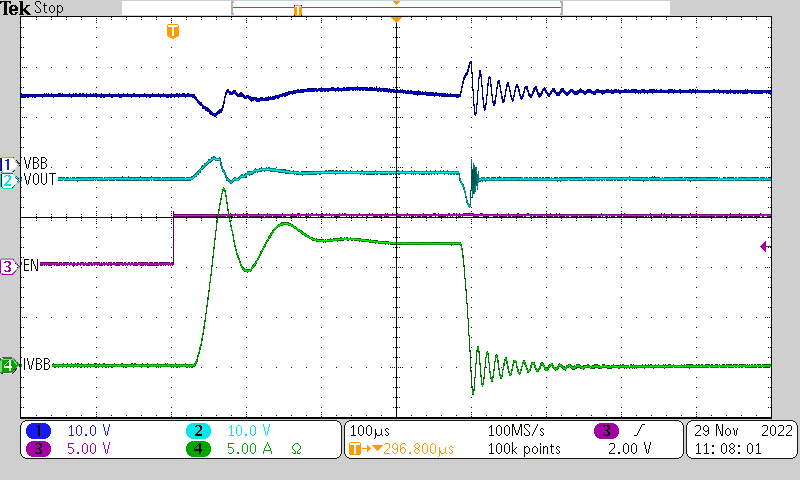

Figure 6-23 Short Circuit With ILIM Shorted to Ground

R_OUT = 470 μF and 20 Ω	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB = 13.5 V	R_SNS = 1 kΩ	R_ILIM = 71.5 kΩ

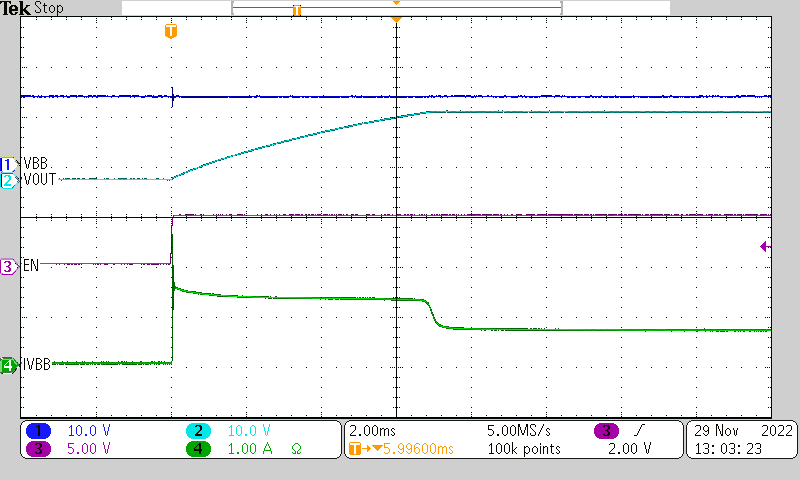

Figure 6-25 470-μF Capacitive Load Driving

V_OUT = 0 V	V_EN = 0 V	V_{DIAG_EN} = 0 V
V_BB Varied

Figure 6-2 Standby Current I_SB vs Temperature

I_OUT = 0 A	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB Varied

Figure 6-4 Quiescent Current I_Q vs Temperature

I_OUT = 1 A	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB Varied

Figure 6-6 R_DSON vs Temperature

I_OUT = 1 A	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB Varied

Figure 6-8 R_ONREV vs Temperature

R_OUT varied	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB = 13.5 V	R_SNS = 1 kΩ

Figure 6-10 KSNS Error vs Load Current

R_OUT = 5 μH and 100 mΩ	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB varied	R_SNS = 1 kΩ

Figure 6-12 VSNSFH (3.3 V) vs VBB

R_OUT = 10 Ω	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB varied	R_SNS = 1 kΩ

Figure 6-14 Turn-On Time T_ON vs Temperature

R_OUT = 10 Ω	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB varied	R_SNS = 1 kΩ

Figure 6-16 Rising Slew Rate SRR vs Temperature

R_OUT = 1 kΩ	V_EN = 0 to 3.3 V	V_{DIAG_EN} = 0 to 3.3 V
V_BB varied	R_SNS = 1 kΩ

Figure 6-18 V_IH vs Temperature

R_OUT = 10 Ω	V_EN = 0 to 5 V	V_{DIAG_EN} = 0 V
V_BB = 13.5 V	R_SNS = 1 kΩ

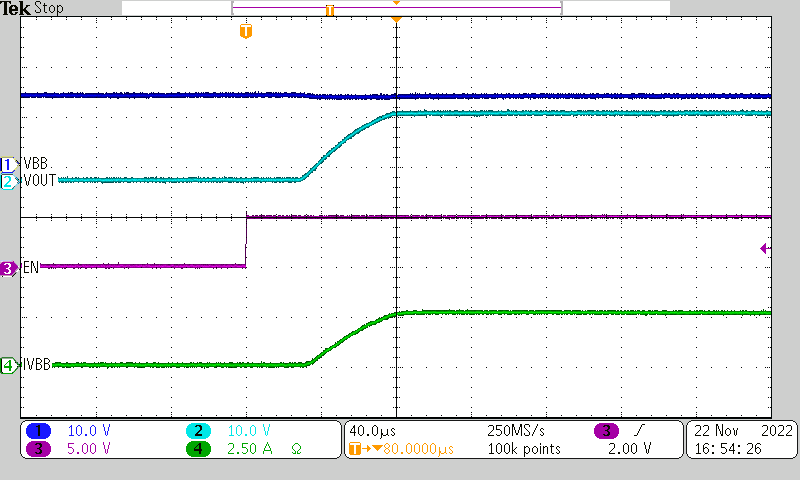

Figure 6-20 Turn-On Time (t_ON)

I_OUT = 1 A to 5 A	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB = 13.5 V	R_SNS = 1 kΩ

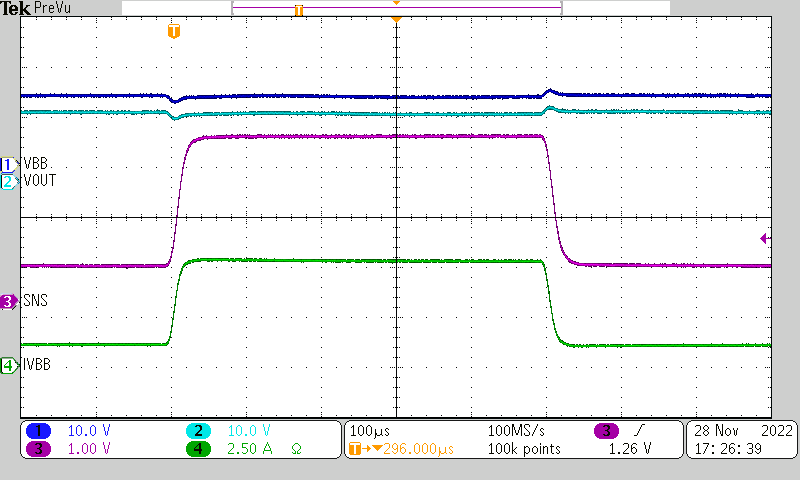

Figure 6-22 ISNS Settling Time (t_SNSION) on Load Step

R_OUT = 5 mH	V_EN = 5 V	V_{DIAG_EN} = 5 V
V_BB = 13.5 V	R_SNS = 1 kΩ	R_ILIM = GND

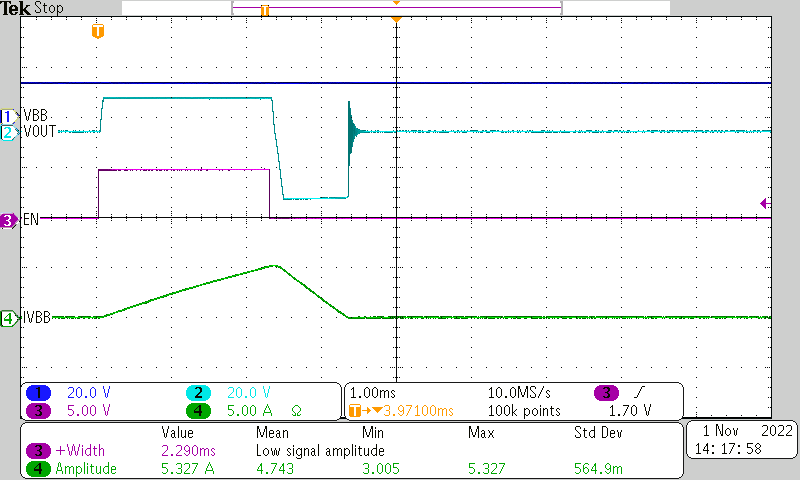

Figure 6-24 5-mH Inductive Load Driving
