8.2.3 Application Curves

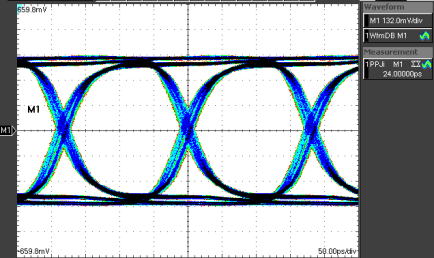

Figure 8-3 Output Eye Diagram Without TPD2EUSB30/A (Figure 8-2 Setup, 5 Gbps Data Rate)

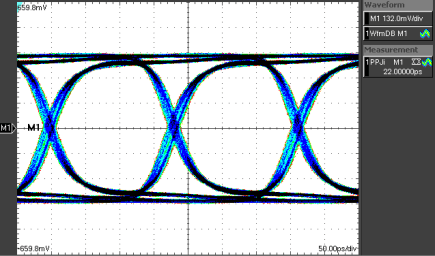

Figure 8-4 Output Eye Diagram With the TPD2EUSB30/A (Figure 8-2 Setup, 5 Gbps Data Rate)

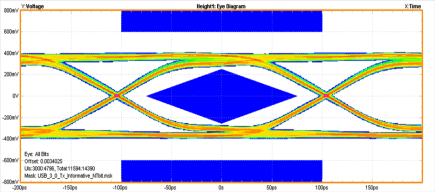

Figure 8-5 Output Eye Diagram Without the TPD4EUSB30 (5 Gbps Data Rate)
Figure 8-6 Output Eye Diagram with the TPD4EUSB30 (5 Gbps Data Rate)
