7.2.1 Window Comparator
Window comparators are commonly used to detect undervoltage and overvoltage conditions. Figure 7-3 shows a simple window comparator circuit.

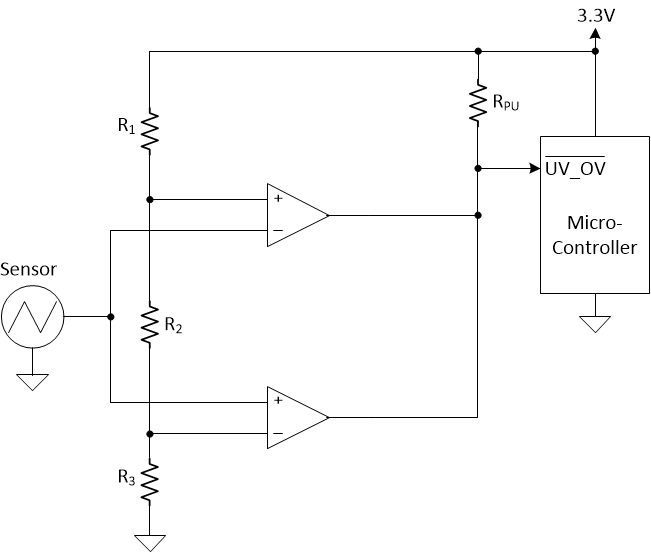

Figure 7-3 TLV704x-Based Window Comparator
