7.2.4.3 Application Curve

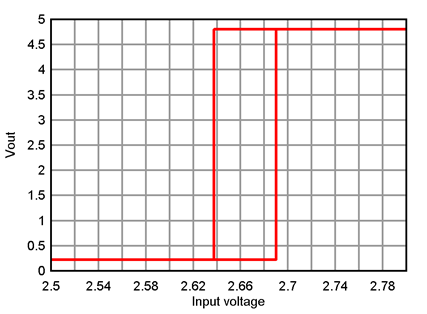

Figure 49 shows the TLV7032 achieving approximately 50mV of hysteresis using the following component values:
- R1 = 100kΩ
- R2 = 24.9kΩ
- VREF (IN-) = 0.525V
Figure 7-12 DC Input Voltage Sweep
