7.5.7 I2S Mode
In I2S mode, the MSB of the left channel is valid on the second rising edge of the bit clock after the falling edge of the word clock. Similarly, the MSB of the right channel is valid on the second rising edge of the bit clock after the rising edge of the word clock. Figure 7-18 shows a timing diagram of this operation.

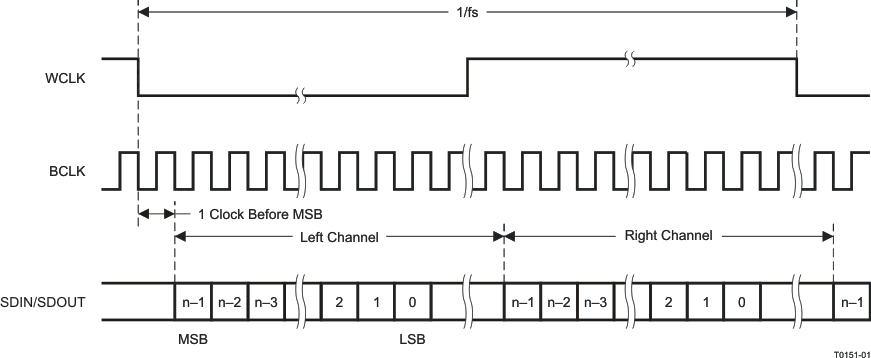

Figure 7-18 I2S Serial Data Bus Mode Operation
