7.5.8 DSP Mode
In DSP mode, the rising edge of the word clock starts the data transfer with the left-channel data first, immediately followed by the right-channel data. Each data bit is valid on the falling edge of the bit clock.

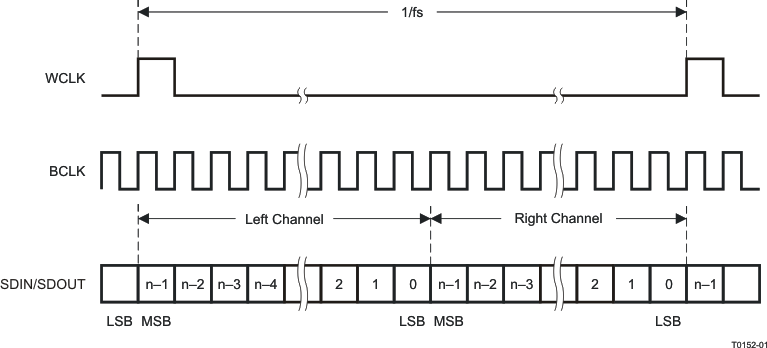

Figure 7-19 DSP Serial Data Bus Mode Operation
