9.2 Typical Application

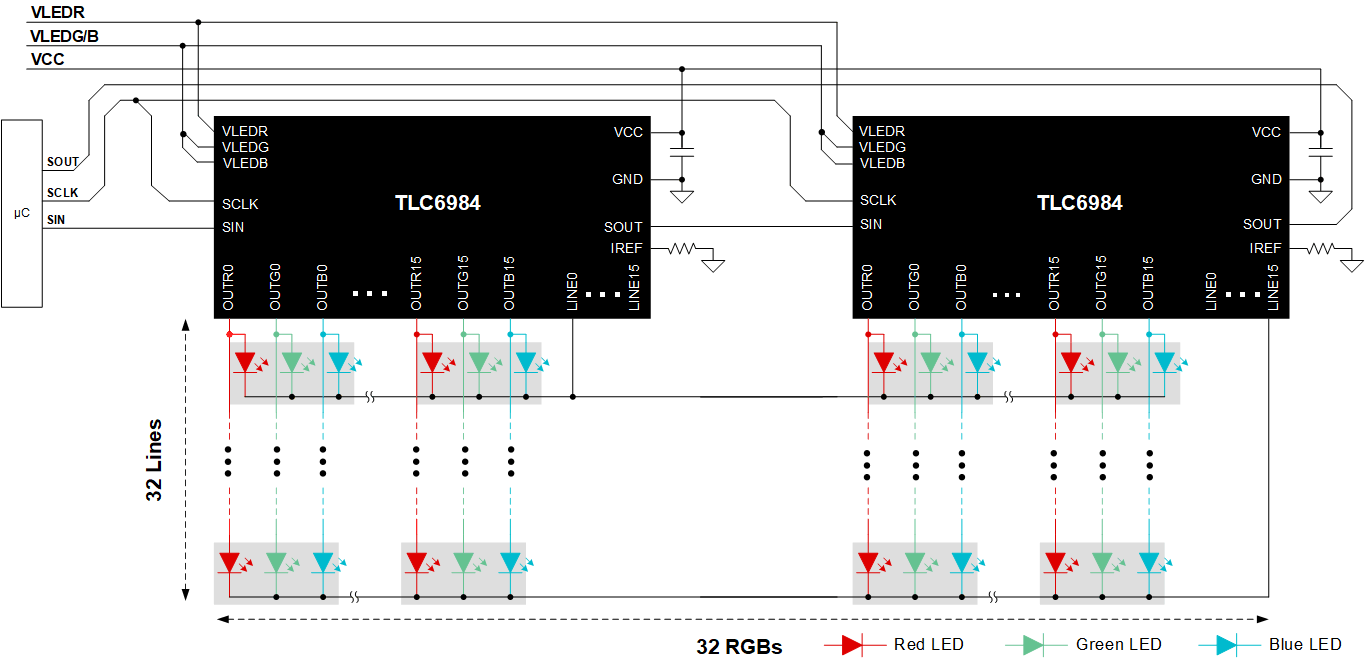

The TLC6984 is typically connected in series in a daisy-chain to drive the LED matrix with only a few controller ports. Figure 9-1 shows a typical application diagram with two TLC6984 devices stackable connection to drive 32 × 32 RGB LED pixels.
Figure 9-1 TLC6984
With Dual Devices Stackable Connection
