10.2.3 Application Curves

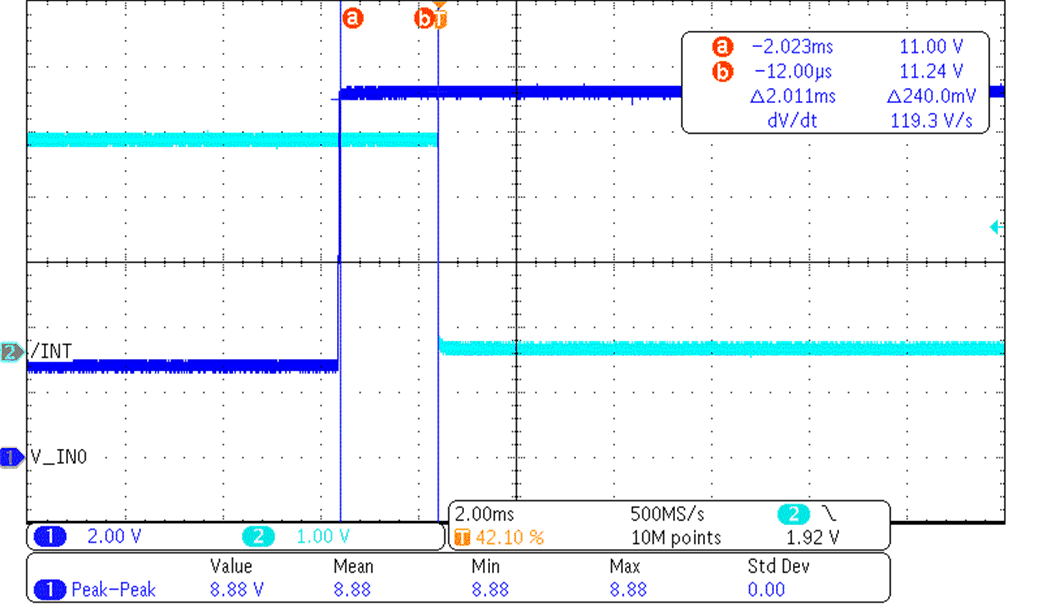

Figure 10-2 is the scope shot showing the switch getting toggled from close to open at time a). Before toggling, the voltage at VIN0 stays low at roughly 2.7 V. Once the switch opens, the voltage at VIN0 gets pulled high to the VS voltage. The INT pin is asserted shortly after the switch toggles at time b) to notify the microcontroller a switch state change event has occurred.
Figure 10-2 Measured Waveform Showing VIN0 Pin and INT Pin Voltages
