5 Pin Configuration and Functions
Drawing is Preliminary.

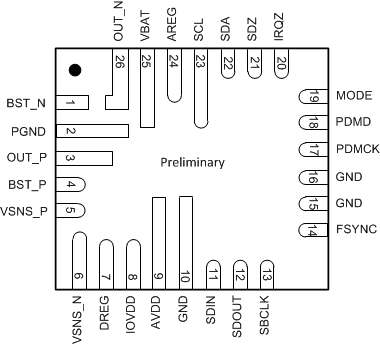

Figure 5-1 QFN Package26-Pin RJQTop View
Figure 5-2 WCSP30-BallTop ViewTable 5-1 Pin Functions
| PIN | I/O | DESCRIPTION | ||
|---|---|---|---|---|
| DSBGA | QFN | NAME | ||
| D5 | 24 | AREG | O | Gate drive voltage regulator output. Decouple with cap to GND. Do not connect to external load. |
| C1 | 9 | AVDD | P | Analog power input. Connect to 1.8V supply and decouple to GND with cap. |
| A2 | 1 | BST_N | I | Class-D negative bootstrap. Connect a cap between BST_N and OUT_N. |
| B2 | 4 | BST_P | I | Class-D positive bootstrap. Connect a cap between BST_P and OUT_P. |
| D1 | 7 | DREG | O | Digital core voltage regulator output. Bypass to GND with a cap. Do not connect to external load. |
| E2 | 14 | FSYNC | I | TDM Frame Sync. |
| C2, E3, E4 | 10, 15, 16 | GND | P | Analog GND. Connect to PCB GND Plane. |
| D2 | 8 | IOVDD | P | Digital IO Supply. Connect to the same 1.8 V supply that powers AVDD and decouple with a cap to GND. |
| D4 | 20 | IRQZ | O | Open drain, actve low interrupt pin. Pull up to IOVDD with resistor if optional internal pull up is not used. |
| D3 | 19 | MODE | I | Mode detect pin. This pin can detect a short to IOVDD or GND, a 470 Ω connection to IOVDD or GND, a 2.2 kΩ connection to IOVDD or GND, a 10 kΩ connection to IOVDD or GND and a 47 kΩ connection to IOVDD. Minimize capacitive loading on this pin and do not connect to any other load. |
| A5, B5 | 26 | OUT_N | O | Class-D negative output. |
| A3, B3 | 3 | OUT_P | O | Class-D positive output. |
| F5 | 17 | PDMCK | IO | PDM Clock. |
| E5 | 18 | PDMD | I | PDM Digital Input. |
| A4, B4 | 2 | PGND | P | Class-D GND. Connect to PCB GND Plane. |
| F1 | 13 | SBCLK | I | TDM Serial Bit Clock in TDM/I2C Mode. |
| F4 | 23 | SCL | I | I2C Clock Pin. Pull up to IOVDD with a resistor. |
| F3 | 22 | SDA | IO | I2C Data Pin. Pull up to IOVDD with a resistor. |
| F2 | 11 | SDIN | I | TDM Serial Data Input. |
| E1 | 12 | SDOUT | IO | TDM Serial Data Output in TDM/I2C Mode. |
| C3 | 21 | SDZ | I | Active low hardware shutdown. |
| C4, C5 | 25 | VBAT | P | Class-D power supply input. Connect to VBAT supply and decouple with a cap. |
| B1 | 6 | VSNS_N | I | Voltage Sense negative input. Connect to Class-D negative output after Ferrite bead filter. |
| A1 | 5 | VSNS_P | I | Voltage Sense positive input. Connect to Class-D positive output after Ferrite bead filter. |
