7.3.8.3 System Reset
The PCM9211 has two sources for reset: the internal power-on reset circuit (hereafter called POR) and the external reset circuit. See Figure 7-4 for an illustration of the timing sequence during an internal power-on reset event. Initialization (reset) is done automatically when VDD exceeds 2.2 V (typ).
When only the onboard POR is to be used, the RST pin should be connected to VDD directly. An external pull-up resistor should not be used, because the RST pin has an internal pull-down resistor (typ 50 kΩ). If an external resistor is used, then the reset is not released. The reset sequence is shown in Figure 7-1. The Section 6.8 table lists the timing requirements to reset the device using the RST pin.

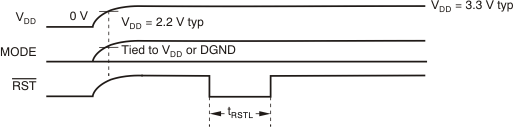

Figure 7-1 Required System Reset TimingThe condition of each output pins during the device reset is shown in Table 7-2.
Table 7-2 Output Pin Condition During
Reset
| CLASSIFICATION | PIN NAME | AT RST = L(1) |
|---|---|---|
| Main output port | SCKO | L |
| BCK | L | |
| LRCK | L | |
| DOUT | L | |
| Flag and status | ERROR/INT0 | H |
| NPCM/INT1 | L | |
| MPIOs and MPOs | MPIO_A0 through MPIO_A3 | Hi-Z |
| MPIO_B0 through MPIO_B3 | Hi-Z | |
| MPIO_C0 through MPIO_C3 | Hi-Z | |
| MPO0, MPO1 | L | |
| Serial I/F | MDI/SDA | Hi-Z |
| MDO/ADR0 | Hi-Z | |
| Oscillation circuit | XTO | Output |
| Common supply for ADC | VCOM | Output |
| Coax input | RXIN0, RXIN1 | H |
(1) L = low, H = high, Hi-Z = high impedance.
