7.3.8.5.5 ADC: Power Down and Power Up
If synchronization is maintained among SCKI, BCK, and LRCK, the DOUT from the ADC is enabled and a fade-in begins tADCDLY1 = 2048/fS after the internal reset is released. DOUT then starts to output data corresponding to VINL and VINR after tADCDLY2 = 1936/fS from the start of fade-in. If synchronization is not maintained, the internal reset is not released, and the ADC is held in reset. After resynchronization, the ADC begins its fade-in operation after internal initialization and an initial delay. During fade-in (tADCDLY1 + tADCDLY2) and fade-out (tADCDLY2), SCKI, BCK, and LRCK must be provided. Figure 7-4 illustrates the ADC output sequence at power up and power down.

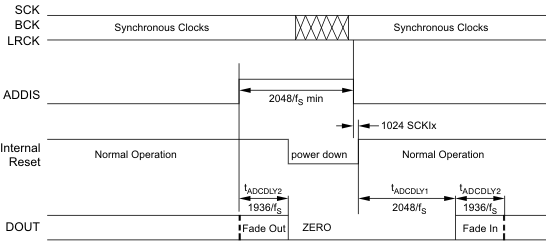

Figure 7-4 ADC Output At Power Up And Power Down
