7.3.8.6.7 DIR: Parity Error Processing
Error detection and processing for parity errors behave in the following manner:
- For PCM data, when an error is detected (for example, a parity error), then the data from the previous sample are repeated. This sequence is shown in Figure 7-16, where sample Ln+1 is repeated because the incoming data (Ln+2) had an error.
- For non-PCM data, the data are output as is with no changes. (Non-PCM data implies data which has Channel Status bit 1 = 1.)

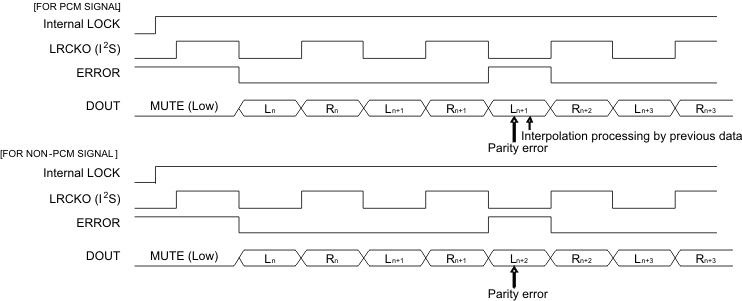

Figure 7-16 shows the processing for parity error occurrence.
Figure 7-16 Processing for Parity Error OccurrenceThe PCM9211 handles parity errors as directed by the 23h/PRTPRO[1:0] registers.
When set to 01, if the error is received eight times sequentially, the DIR output is muted on the next error. Until the mute is enabled, the previously accurate sample is repeated. This function is only valid for PCM data.
When set to 10, the device behaves in exactly the same way as it does when set to 01. However, this function is enabled for both PCM and non-PCM data.
When set to 00, the device ignores parity errors and continues to output whatever data comes into the device.
The setting on 11 is reserved.
