7.3.8.9 Default Routing Function (After Reset)
The default routing paths are shown in Figure 7-22. MPIO_A0-A3 are selected by CLKST, VOUT, XMCKO, and INT0. Note that by default, MPIO_A0-A3 pins are Hi-Zas set by Registers MPA0HZ, MPA1HZ, MPA2HZ, and MPA3HZ.

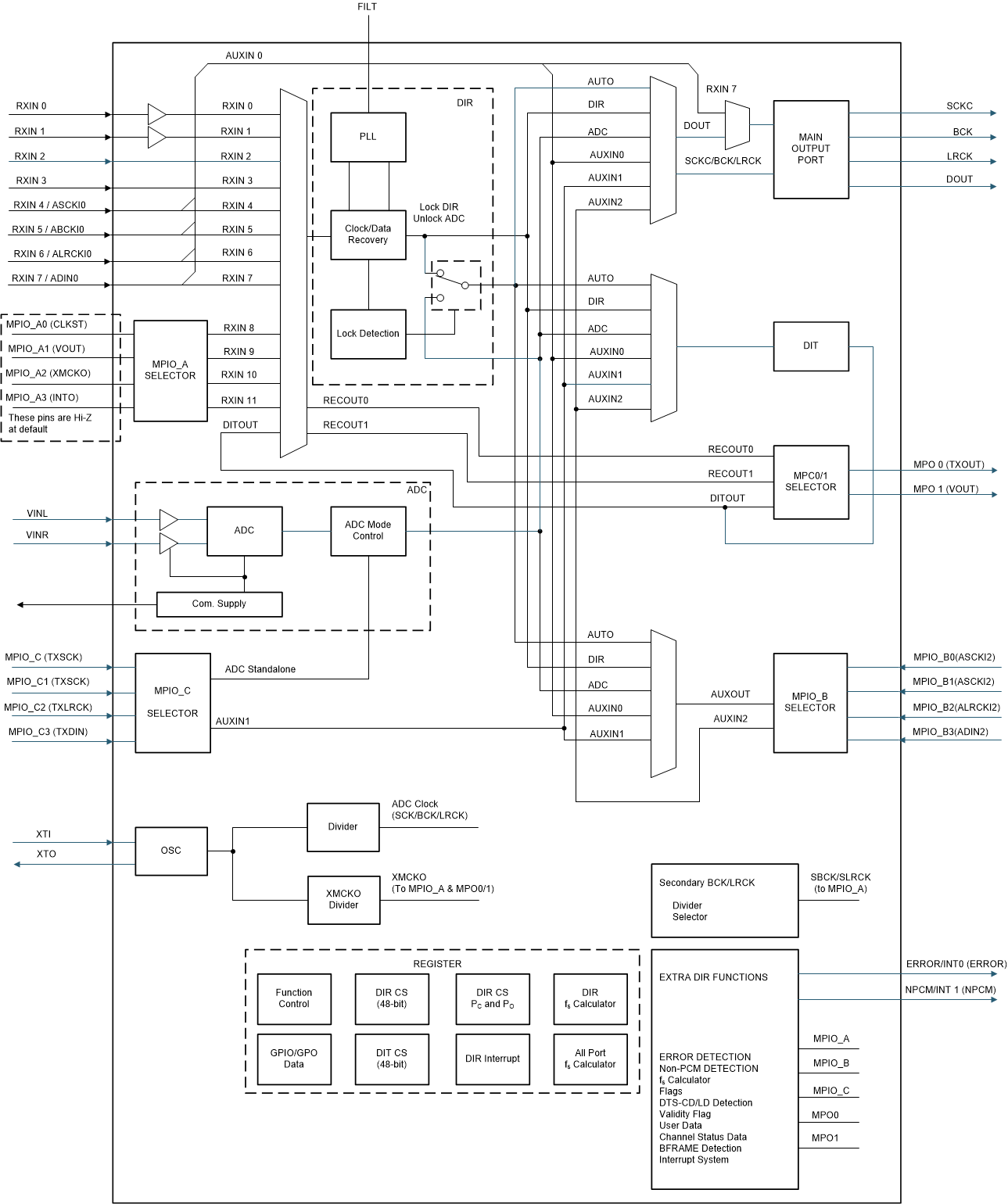

Figure 7-22 Default
Routing Block DiagramBy default, the ADC starts up as a clock slave to the crystal that is connected to the PCM9211. The DIR receives data on RXIN2. When the DIR is unlocked, the ADC has priority, and uses the Main port. When the DIR is locked, data from the MAIN PORT are DIR data.
