9.3.3.1.1 Fixed Digital Delay Example
Assuming the device already has the following initial configurations, and the application should delay DCLKout2 by one VCO cycle compared to DCLKout0.
- VCO frequency = 2949.12 MHz
- DCLKout0 = 368.64 MHz (DCLKout0_DIV = 8)
- DCLKout2 = 368.64 MHz (DCLKout2_DIV = 8)
The following steps should be followed
- Set DCLKout0_DDLY_CNTH = 4 and DCLKout2_DDLY_CNTH = 4. First part of delay for each clock.
- Set DCLKout0_DDLY_CNTL = 4 and DCLKout2_DDLY_CNTL = 5. Second part of delay for each clock.
- Set DCLKout2_DDLY_PD = 0 and DCLKout2_DDLY_PD = 0. Power up the digital delay circuit.
- Set SYNC_DIS0 = 0 and SYNC_DIS2 = 0. Allow the output to be synchronized.
- Perform SYNC by asserting, then unasserting SYNC. Either by using SYNC_POL bit or the SYNC pin.
- Power down DCLKout2_DDLY_PD = 0 and/or DCLKout2_DDLY_PD = 1 to save power now that the SYNC is complete.
- Set SYNC_DIS0 = 1 and SYNC_DIS2 = 1 to prevent the output from being synchronized; this step is very important for steady-state operation when using JESD204B.

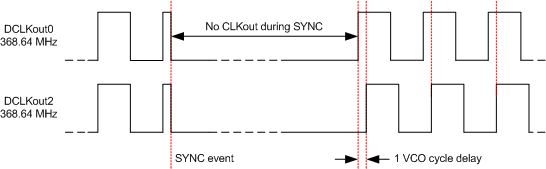

Figure 7. Fixed Digital Delay Example Table 4 shows the recommended DCLKoutX_DDLY_CNTH and DCLKoutX_DDLY_CNTL alternate divide setting for delay by one VCO cycle. The clock will output high during the DCLKoutX_DDLY_CNTH time to permit a continuous output clock. The clock output will be low during the DCLKoutX_DDLY_CNTL time.
Table 4. Recommended DCLKoutX_DDLY_CNTH/_CNTL Values for Delay by One VCO Cycle
| CLOCK DIVIDER | _CNTH | _CNTL | CLOCK DIVIDER | _CNTH | _CNTL | |
|---|---|---|---|---|---|---|
| 2 | 2 | 3 | 17 | 9 | 9 | |
| 3 | 3 | 4 | 18 | 9 | 10 | |
| 4 | 2 | 3 | 19 | 10 | 10 | |
| 5 | 3 | 3 | 20 | 10 | 11 | |
| 6 | 3 | 4 | 21 | 11 | 11 | |
| 7 | 4 | 4 | 22 | 11 | 12 | |
| 8 | 4 | 5 | 23 | 12 | 12 | |
| 9 | 5 | 5 | 24 | 12 | 13 | |
| 10 | 5 | 6 | 25 | 13 | 13 | |
| 11 | 6 | 6 | 26 | 13 | 14 | |
| 12 | 6 | 7 | 27 | 14 | 14 | |
| 13 | 7 | 7 | 28 | 14 | 15 | |
| 14 | 7 | 8 | 29 | 15 | 15 | |
| 15 | 8 | 8 | 30 | 15 | 16(1) | |
| 16 | 8 | 9 | 31 | 16(1) | 16(1) |
(1) To achieve _CNTH/_CNTL value of 16, 0 must be programmed into the _CNTH/_CNTL field.
