5.6 Typical Characteristics

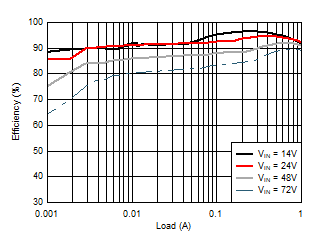

Figure 5-1 Conversion Efficiency (Log Scale)

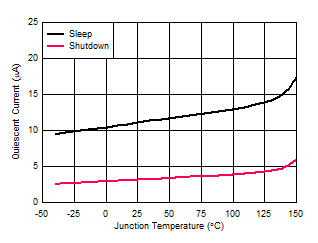

Figure 5-3 VIN Shutdown and Sleep Supply Current versus
Temperature

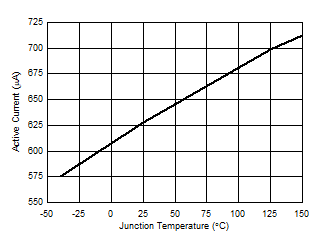

Figure 5-5 VIN Active Current versus Temperature

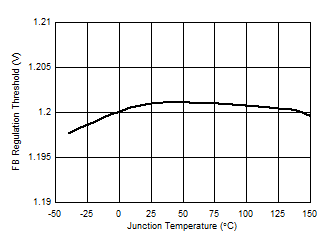

Figure 5-7 Feedback Comparator Threshold versus Temperature

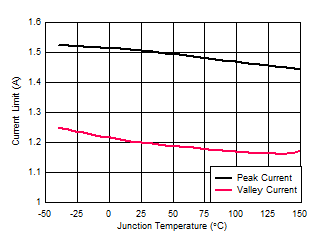

Figure 5-9 Peak
and Valley Current Limit versus Temperature

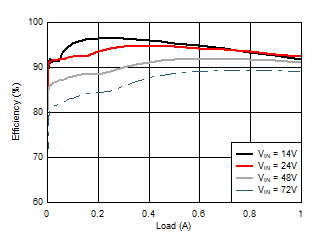

Figure 5-2 Conversion Efficiency (Linear Scale)

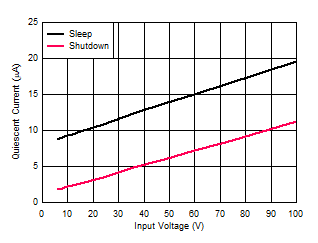

Figure 5-4 VIN Shutdown and Sleep Supply Current versus Input
Voltage

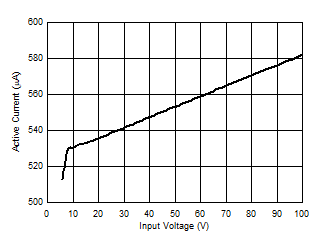

Figure 5-6 VIN Active Current versus Input Voltage

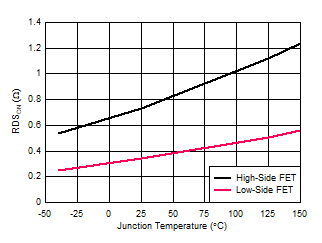

Figure 5-8 MOSFETs On-State Resistance versus Temperature

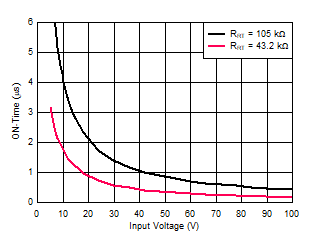

Figure 5-10 COT
On-Time versus VIN
