7.4.2 Layout Example

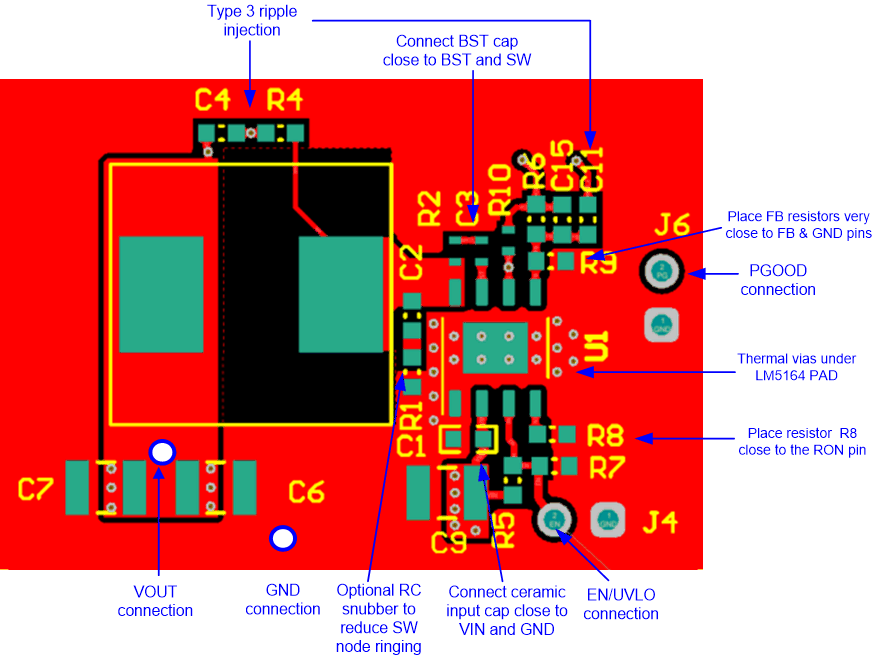

Figure 7-17 shows an example layout for the PCB top layer of a 2-layer board with essential components placed on the top side.
Figure 7-17 LM5164-Q1 Single-Sided PCB Layout Example
