8.3.4 Inverting Regulator Shutdown Methods
To use the ON/OFF pin in a standard buck configuration is simple; pull it below 1.3 V (at 25°C, referenced to ground) to turn regulator ON and pull it above 1.3 V to shut the regulator OFF. With the inverting configuration, some level shifting is required, because the ground pin of the regulator is no longer at ground, but is now setting at the negative output voltage level. Two different shutdown methods for inverting regulators are shown in Figure 8-7 and Figure 8-8.

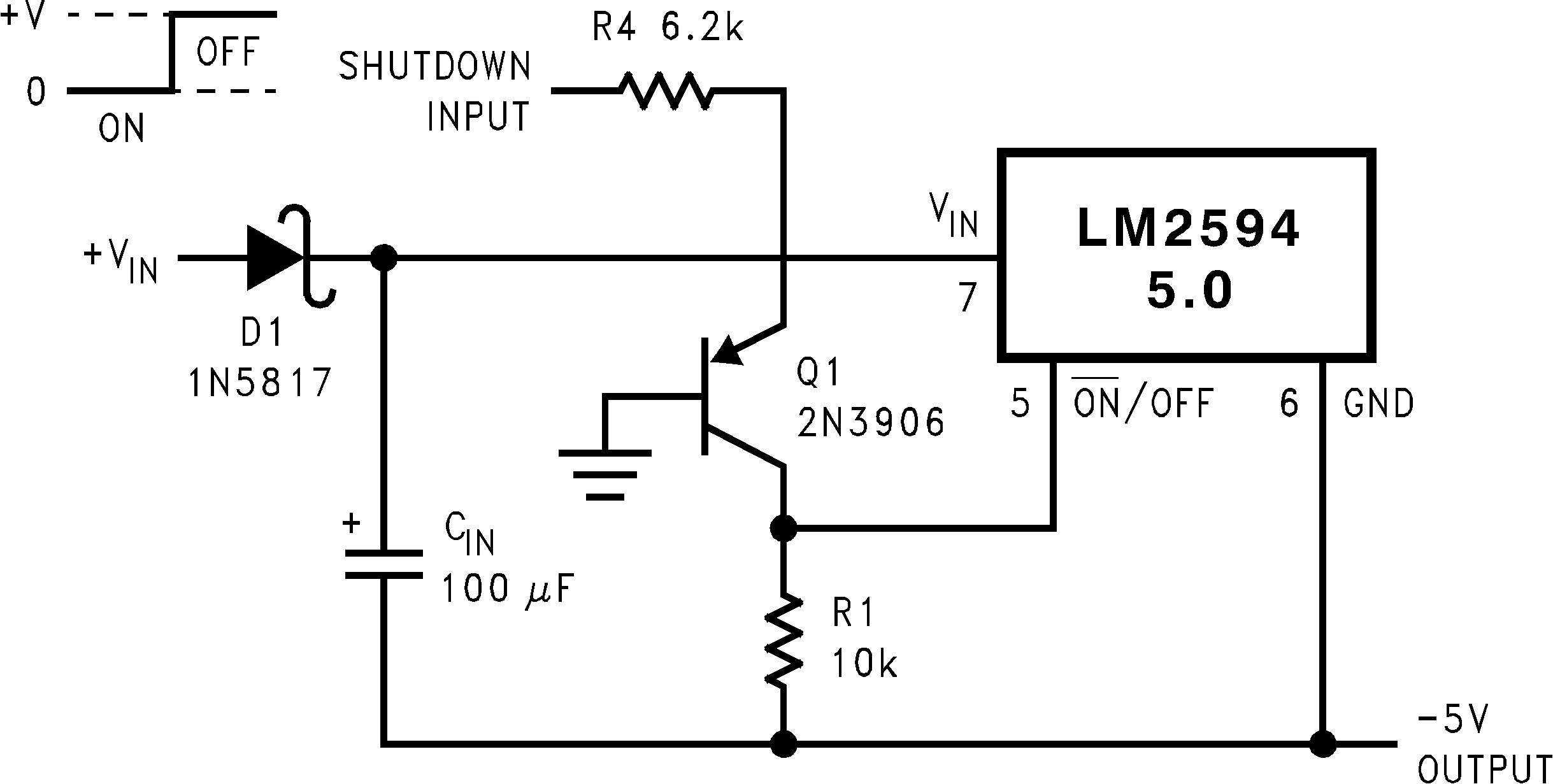

Figure 8-7 Inverting Regulator Ground Referenced Shutdown

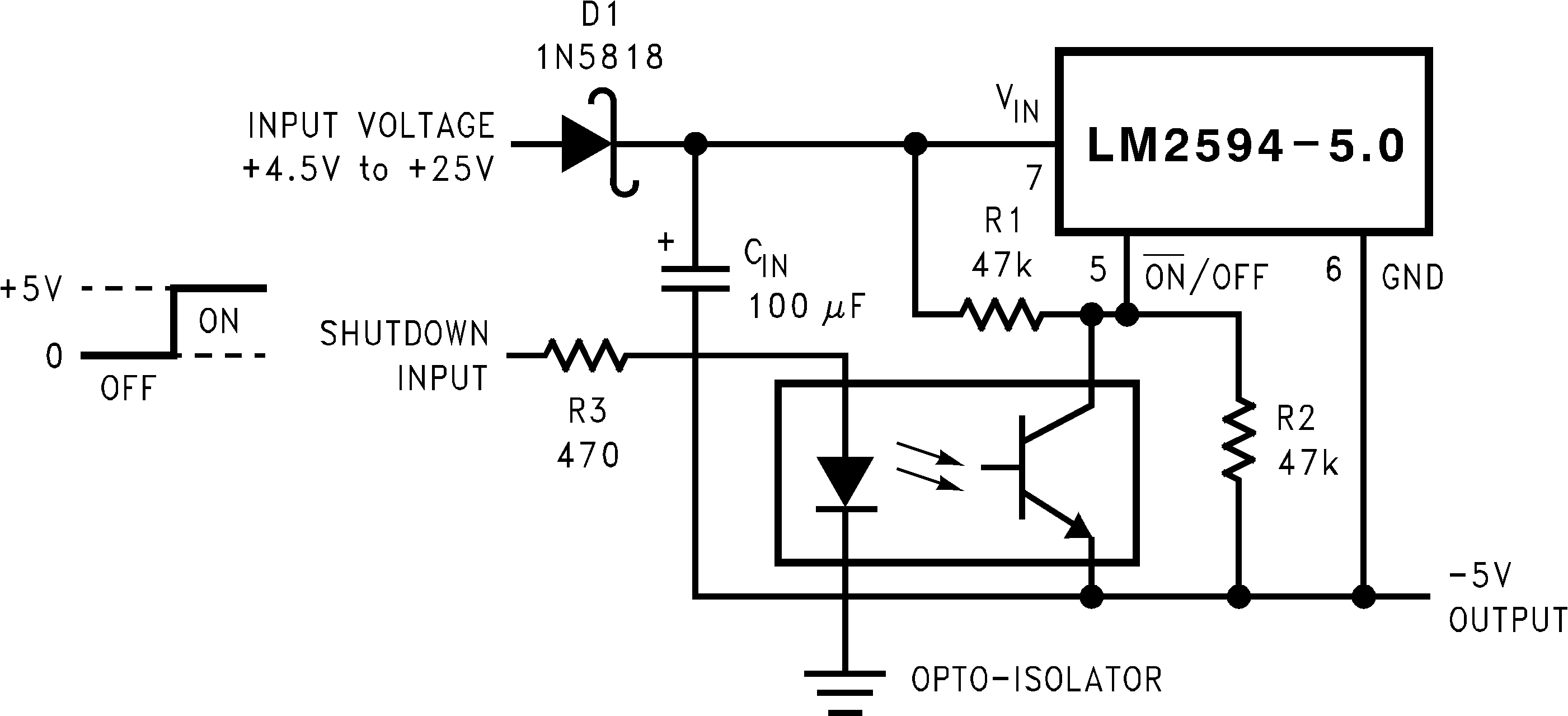

Figure 8-8 Inverting Regulator Ground Referenced Shutdown Using Opto Device
