9.2.2.3 Application Curves

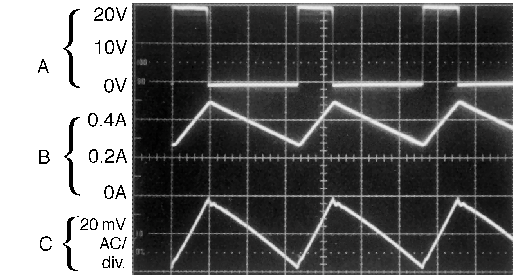

| Continuous mode switching waveforms | ||
| VIN = 20 V, VOUT = 5 V, ILOAD = 400 mA | ||
| L = 100 μH, COUT = 120 μF, COUT ESR = 140 mΩ | ||
| A: Output pin voltage, 10 V/div. | ||
| B: Inductor current, 0.2 A/div. | ||
| C: Output ripple voltage, 20 mV/div. |

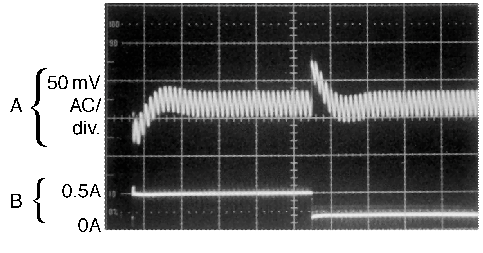

| Load transient response for continuous mode | ||
| VIN = 20 V, VOUT = 5 V, ILOAD = 200 mA to 500 mA | ||
| L = 100 μH, COUT = 120 μF, COUT ESR = 140 mΩ | ||
| A: Output voltage, 50 mV/div. (AC) | ||
| B: 200-mA to 500-mA load pulse | ||
