9.4.2 Layout Example

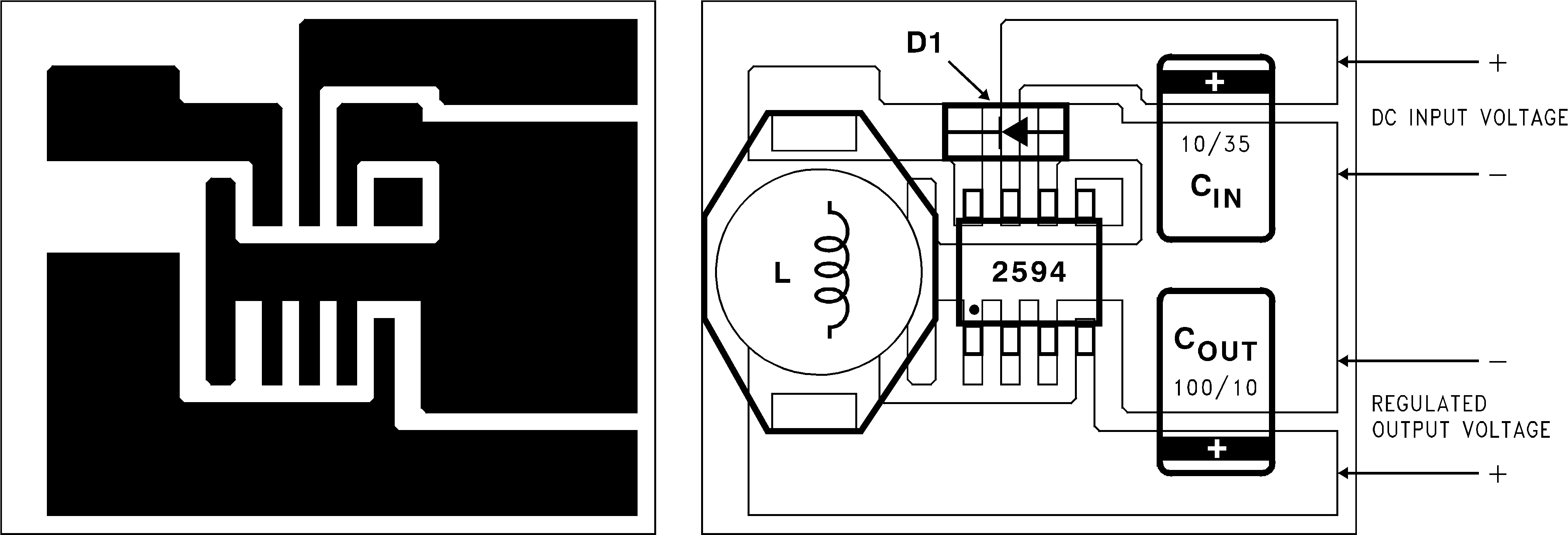

CIN = 10-μF, 35-V, Solid Tantalum AVX, TPS series COUT = 00-μF, 10-V Solid Tantalum AVX, TPS series D1 = 1-A, 40-V Schottky Rectifier, surface mount L1 = 100-μH, L20, Coilcraft DO33
Figure 9-16 Typical Surface-Mount PCB Layout, Fixed Output (2X Size)

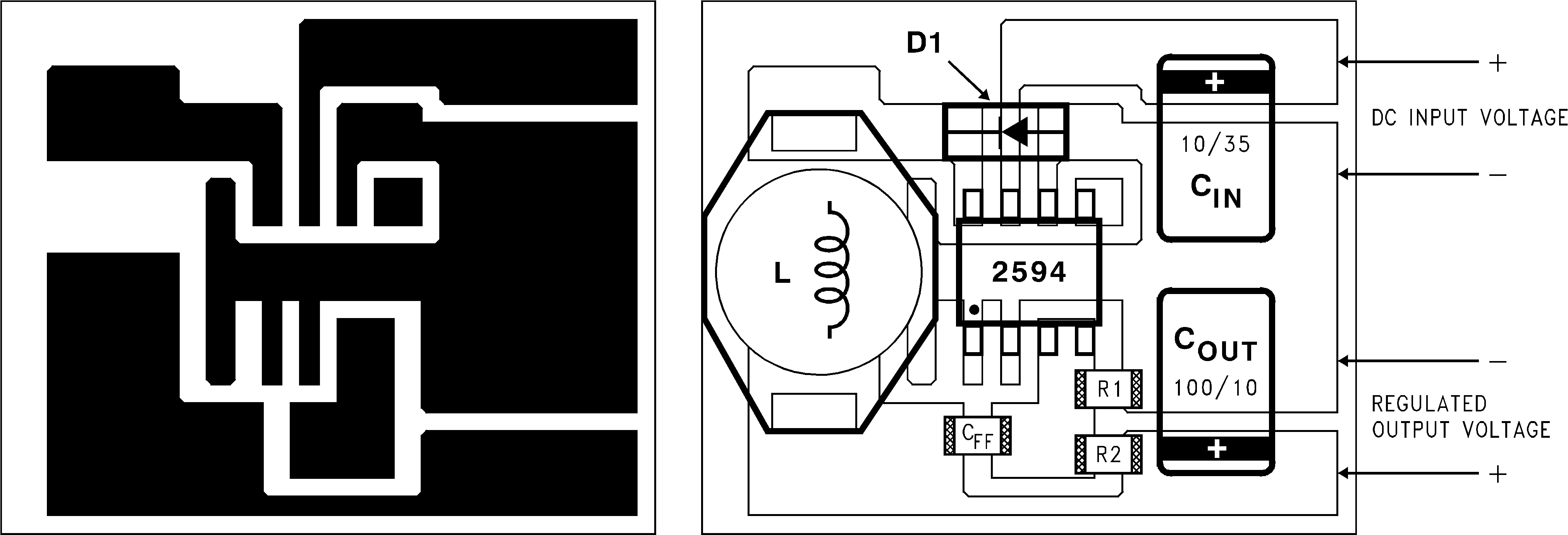

CIN = 10-μF, 35-V, Solid Tantalum AVX, TPS series COUT = 100-μF, 10-V Solid Tantalum AVX, TPS series D1 = 1-A, 40-V Schottky Rectifier, surface mount L1 = 100-μH, L20, Coilcraft DO33 R1 = 1 kΩ, 1% R2 = ?Use formula in Design Procedure CFF = ?See Table 9-7
Figure 9-17 Typical Surface-Mount PCB Layout, Adjustable Output (2X Size)
