9.2.2 Series Buck Regulator (Adjustable Output)
CIN — 68-μF, 35-V, Aluminum Electrolytic Nichicon “PL Series” COUT — 120-μF, 25-V Aluminum Electrolytic, Nichicon “PL Series” D1 — 1-A, 40-V Schottky Rectifier, 1N5819 L1 — 100-μH, L20 R1 — 1 kΩ, 1% CFF — See Section 9.2.2.2.4

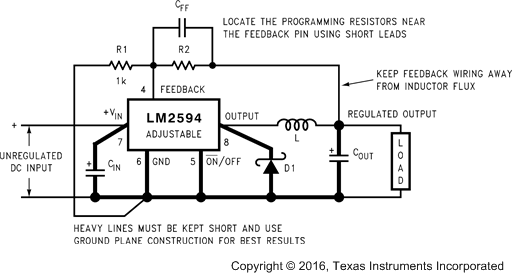

Figure 9-13 Adjustable Output Voltage Version
