9.2.1.3 Application Curves

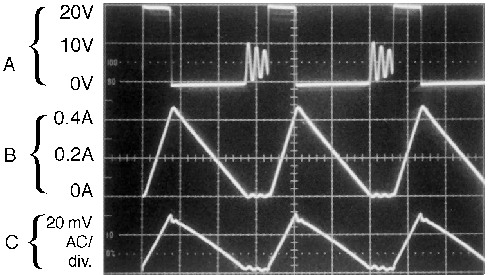

| Discontinuous mode switching waveforms | ||
| VIN = 20 V, VOUT = 5 V, ILOAD = 200 mA | ||
| L = 33 μH, COUT = 220 μF, COUT ESR = 60 mΩ | ||
| A: Output pin voltage, 10 V/div. | ||
| B: Inductor current, 0.2 A/div. | ||
| C: Output ripple voltage, 20 mV/div. |

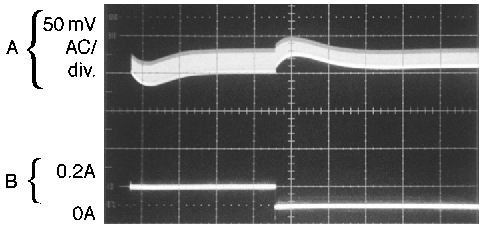

| Load transient response for discontinuous mode | ||
| VIN = 20 V, VOUT = 5 V, ILOAD = 100 mA to 200 mA | ||
| L = 33 μH, COUT = 220 μF, COUT ESR = 60 mΩ | ||
| A: Output voltage, 50 mV/div. (AC) | ||
| B: 100-mA to 200-mA load pulse | ||
