7.8 Typical Characteristics
Figure 7-1 Output Transition-time vs Ambient Temperature

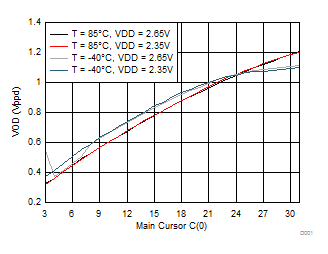

Figure 7-3 Typical VOD vs FIR Main-Cursor
| 0.1 MHz to 1 MHz | Input Random Jitter = 0.078 UIpp | |
Figure 7-2 Typical VOD vs Ambient Temperature

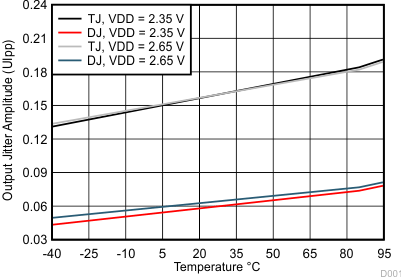

Figure 7-4 Typical Output Jitter vs Ambient Temperature at 25.78125 Gbps

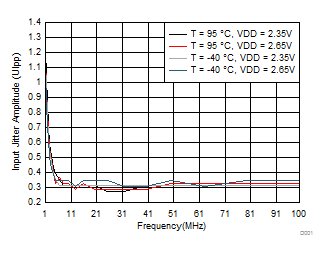

| 1 MHz to 100 MHz | Input Random Jitter = 0.078 UIpp | |
