8.2.3 Application Curves
Figure 7 shows a typical output eye diagram for the DS125DF410 operating at 12.5 Gbps with default VOD of 600mVp-p and de-emphasis setting of –2dB.
Figure 8 shows an example of Tx de-emphasis for a DS125DF410 operating at 12.5 Gbps. In this example, the high speed output is configured for 600mVp-p VOD and de-emphasis is set to –4.5dB. An 8T pattern is used to evaluate the driver, which consists of 0xFF00.
Figure 9 shows a typical output eye diagram for the DS125DF410 operating at 10.3125 Gbps with default VOD of 600mVp-p and de-emphasis setting of –2dB.
Figure 10 shows an example of Tx de-emphasis for a DS125DF410 operating at 10.3125 Gbps. In this example, the high speed output is configured for 600mVp-p VOD and de-emphasis is set to –4.5dB. An 8T pattern is used to evaluate the driver, which consists of 0xFF00.

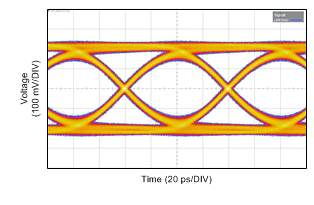

Figure 7. Typical Output Eye Diagram for the DS125DF410 Operating at 12.5 Gbps

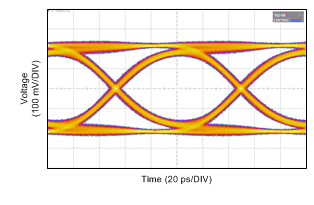

Figure 9. Typical Output Eye Diagram for the DS125DF410 Operating at 10.3125 Gbps with Default VOD of 600mVp-p and De-emphasis Setting of –2dB

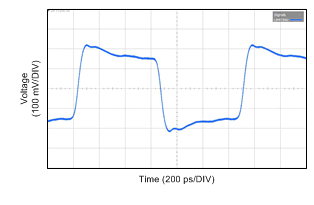

Figure 8. Example of Tx De-emphasis for a DS125DF410 Operating at 12.5 Gbps

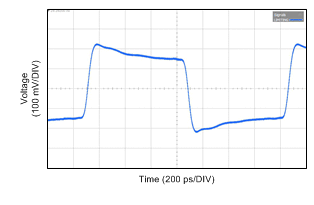

Figure 10. Example Of Tx De-emphasis for a DS125DF410 Operating at 10.3125 Gbps
