6.3.1 PWM H-Bridge Drivers

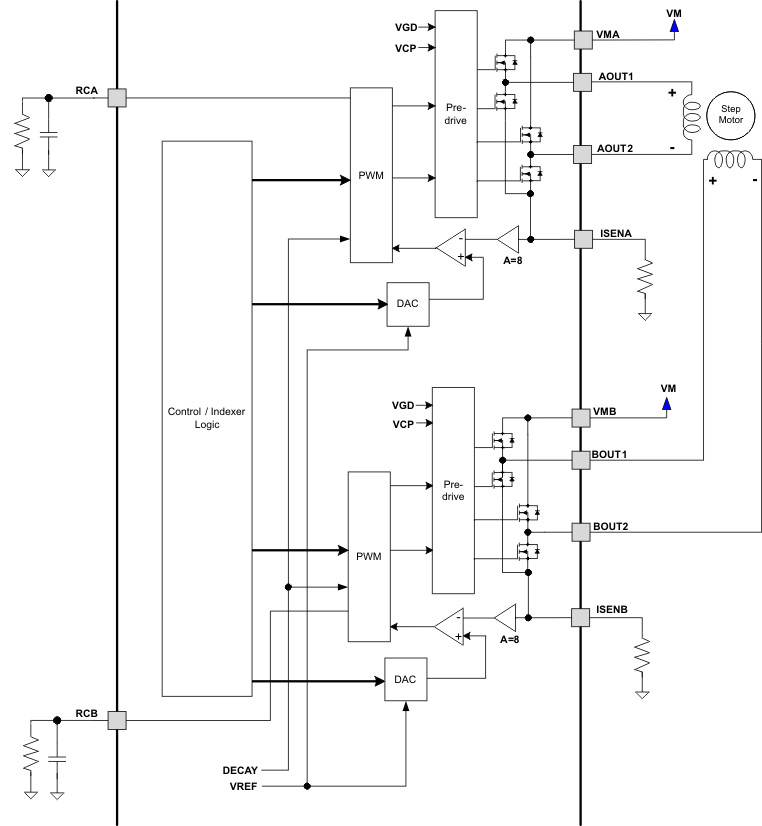

DRV8818 contains two H-bridge motor drivers with current-control PWM circuitry, and a microstepping indexer. A block diagram of the motor control circuitry is shown below.
Figure 6-1 Motor Control Circuitry
