7.4.5 Control Advance Angle

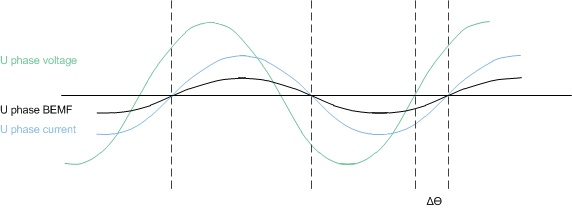

To achieve the best efficiency, the drive state of the motor must be controlled such that the current is aligned with the BEMF voltage of the motor. #SLVSDN21003 illustrates the operation when the drive angle has been optimized. For complete flexibility, the DRV10974 device offers a wide range of fixed lead times. The options for lead time are controlled by a resistor on the ADV pin. The values available are shown in Table 7-4.
Figure 7-15 Drive Angle AdjustmentTable 7-4 Lead Time Selection
| RADV [kΩ]#SLVSDN21012 | LEAD TIME [μs] |
|---|---|
| 10.7 | 10 |
| 14.3 | 25 |
| 17.8 | 50 |
| 22.1 | 100 |
| 28 | 150 |
| 34 | 200 |
| 41.2 | 250 |
| 49.9 | 300 |
| 59 | 400 |
| 71.5 | 500 |
| 86.6 | 600 |
| 105 | 700 |
| 124 | 800 |
| 150 | 900 |
| 182 | 1000 |
(1) All resistors are ±1%.
