8.2 Typical Application
No additional capacitance is needed on the SDQ line and may result in a communication failure.

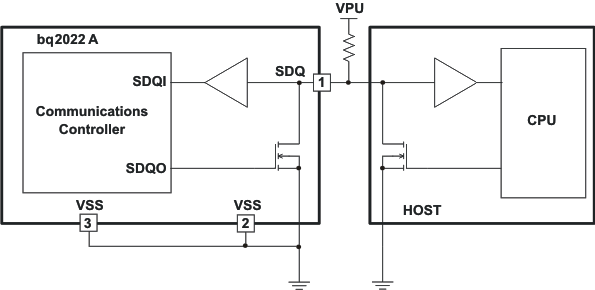

Figure 8-1 Typical Application Circuit
