7.5.11 RESET and PRESENCE PULSE
If the DATA bus is driven low for more than 120 μs, the BQ2022A may be reset. Figure 7-9 shows that if the DATA bus is driven low for more than 480 μs, the BQ2022A resets and indicates that it is ready by responding with a PRESENCE PULSE.

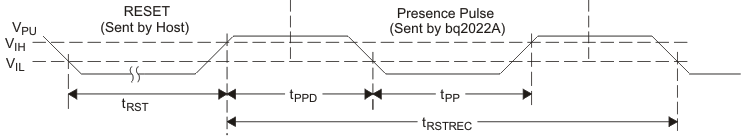

Figure 7-9 Reset Timing Diagram
