B Package Data Sheets
Table B-1 shows TI’s strategic package lineup, followed by package data sheets for many of the package families offered as standard products by Texas Instruments. As new packages are added, they will be placed on the strategic package lineup. Contact your TI field sales office for information on the most current offerings. Samples are available for all packages shown in Table B-1.
Table B-1 TI’s
Strategic Package Line-Up
| nFBGA Package Product Guide | ||||||||
|---|---|---|---|---|---|---|---|---|
| Pitch (mm) | Package Size (mm) | |||||||
| 6×6 | 7×7 | 8×8 | 10×10 | 12×12 | 13×13 | 14×14 | 16×16 | |
| 0.8 | 145ZWS | 361ZWT | ||||||
|
|
|||||||
| 0.65 | 113ZVD | |||||||
|
||||||||
| 0.5 | 87ZVW | 72ZST | 195ZWV | 225ZWF | 289ZVL | 289ZWE | 447ZAC | |
|
|
|
|
|
|
|
||
| 143ZWU | 241ZWG | 293ZVL | 447ZAF | |||||
|
|
|
|
|||||
| 143ZZC | 318ZVL | |||||||
|
|
|||||||
| 152ZZB | 325ZVL | |||||||
|
|
|||||||
| 385ZWK | ||||||||
|
||||||||
| 385ZWM | ||||||||
|
||||||||
| 0.4 | 209ZXN | 241ZWJ | ||||||
|
|
|||||||
| 289ZWJ | ||||||||
|
||||||||
| 360ZWJ | ||||||||
|
||||||||
Table B-2 TI’s Strategic Small Body
Package Line-Up
| nFBGA Package Product Guide | |||||
|---|---|---|---|---|---|
| Pitch (mm) | Package Size (mm) | ||||
| 2 x 1.4 | 2 x 2 | 2 x 2.5 | 2.45 x 2.45 | 2.5 x 3 | |
| 0.4 |  |
||||
| 0.5 |  |
 |
 |
 |
|

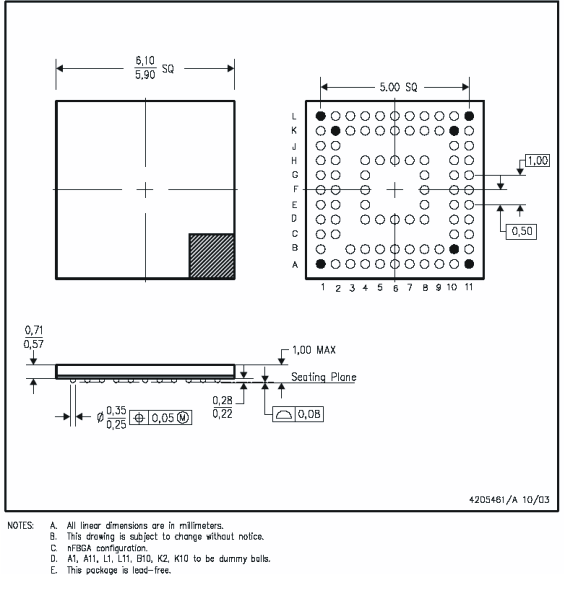

Figure B-1 87ZVW
Package Outline (6 x 6mm, 0.5mm pitch)
Figure B-2 72ZST
Package Outline (7 x 7mm, 0.5mm pitch)

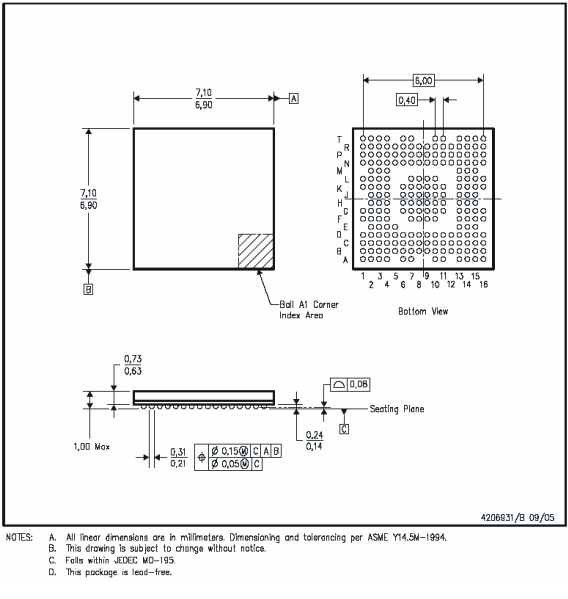

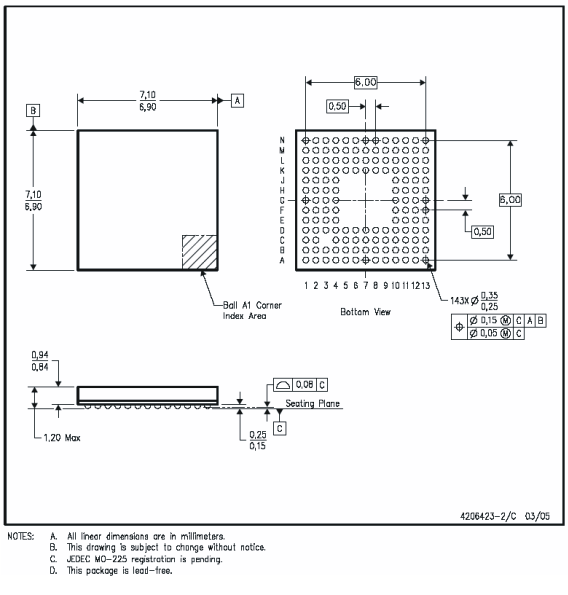

Figure B-3 143ZZC
Package Outline (7 x 7mm, 0.5mm pitch)
Figure B-4 143ZWU
Package Outline (7 x 7mm, 0.5mm pitch)
Figure B-5 152ZZB
Package Outline (7 x 7mm, 0.5mm pitch)
Figure B-6 209ZXN
Package Outline (7 x 7mm, 0.4mm pitch)
Figure B-7 113ZVD
Package Outline (8 x 8mm, 0.65mm pitch)

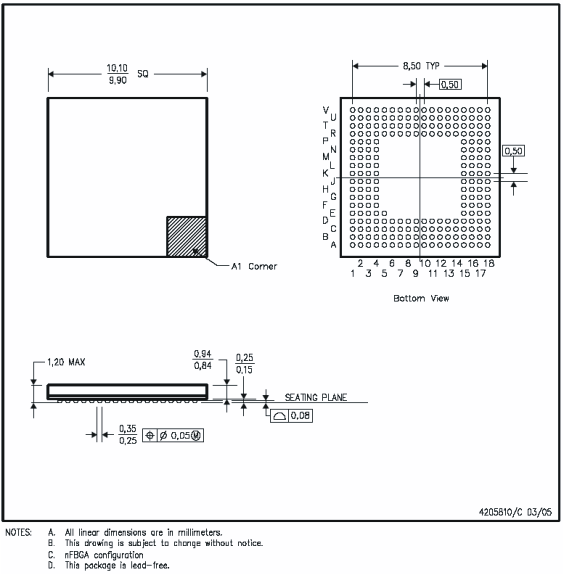

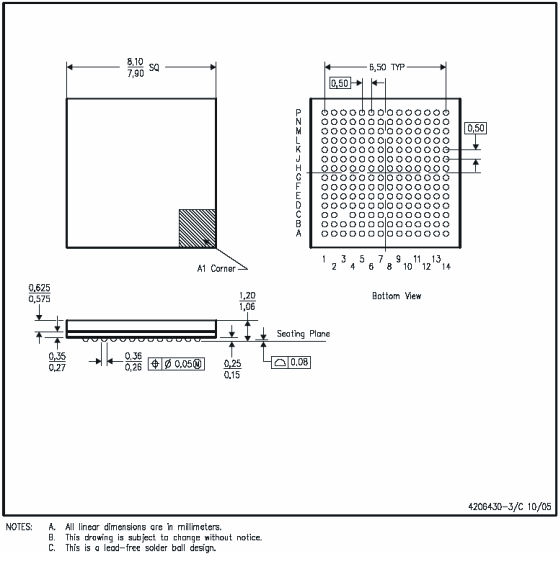

Figure B-8 195ZWV
Package Outline (8 x 8mm, 0.5mm pitch)
Figure B-9 225ZWF
Package Outline (10 x 10mm, 0.5mm pitch)

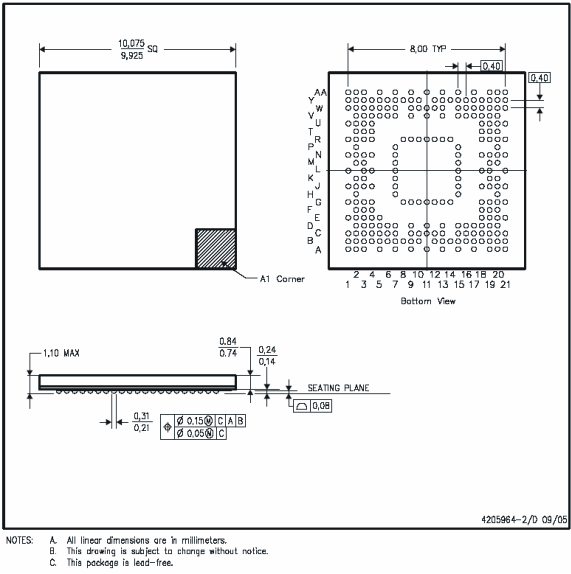

Figure B-10 241ZWG
Package Outline (10 x 10mm, 0.5mm pitch)
Figure B-11 241ZWJ
Package Outline (10x10mm, 0.4mm pitch)

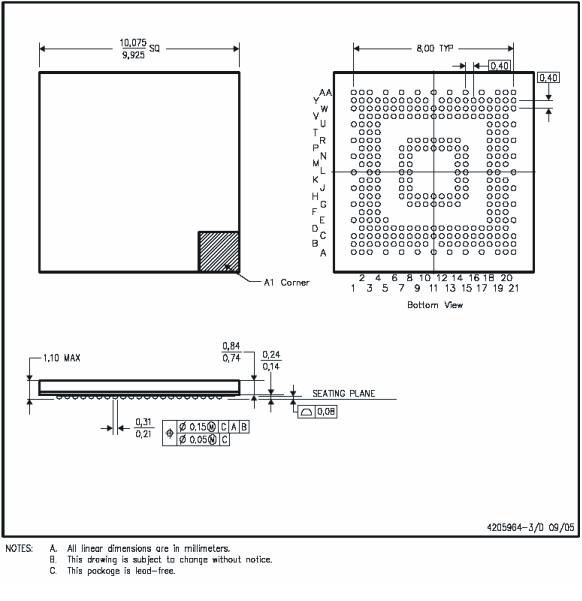

Figure B-12 289ZWJ
Package Outline (10 x 10mm, 0.4mm pitch)
Figure B-13 360ZWJ
Package Outline (10 x 10mm, 0.4mm pitch)

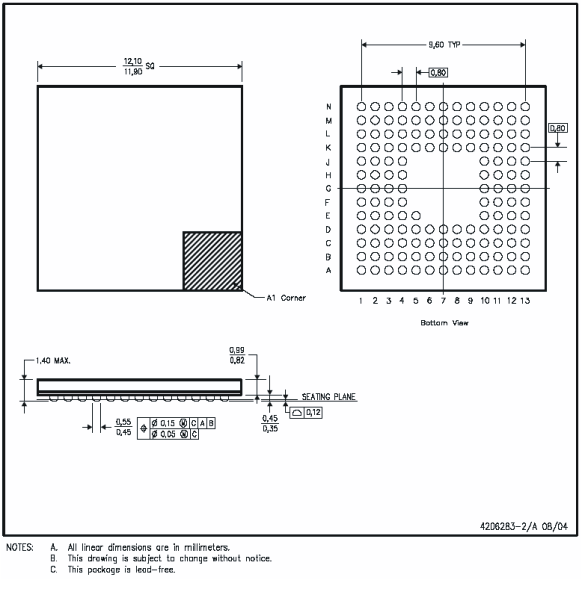

Figure B-14 145ZWS
Package Outline (12 x 12mm, 0.8mm pitch)

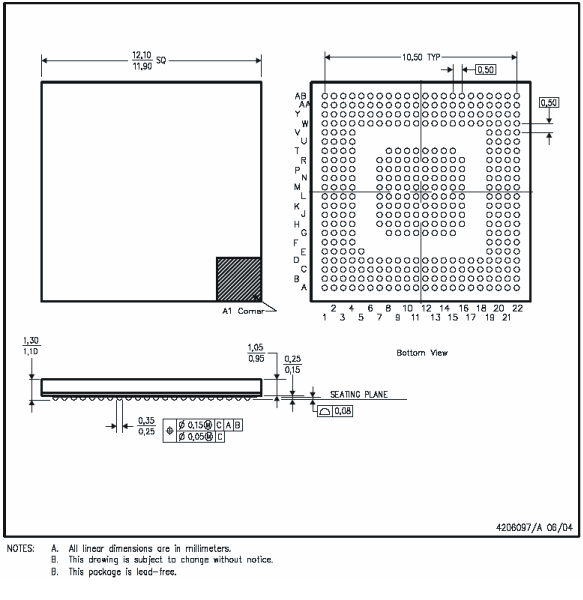

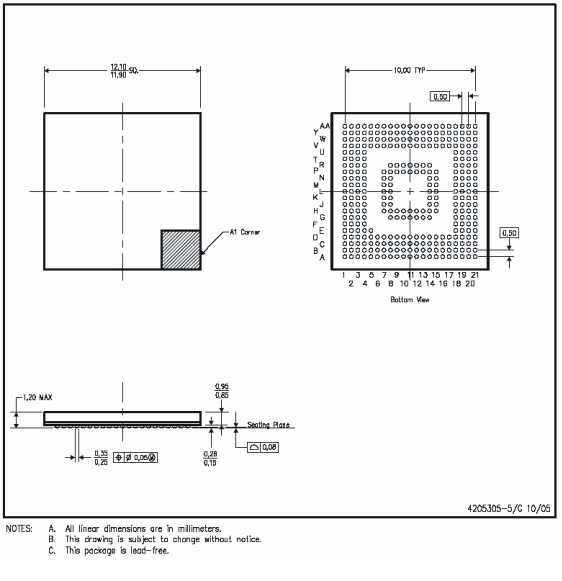

Figure B-15 289ZVL
Package Outline (12 x 12mm, 0.5mm pitch)
Figure B-16 293ZVL
Package Outline (12 x 12mm, 0.5mm pitch)
Figure B-17 318ZVL
Package Outline (12 x 12mm, 0.5mm pitch)
Figure B-18 325ZVL
Package Outline (12 x 12mm, 0.5mm pitch)

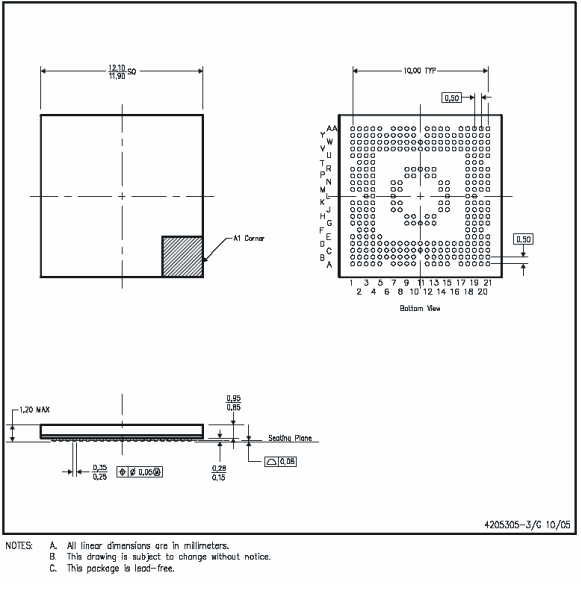

Figure B-19 385ZWM
Package Outline (12 x 12mm, 0.5mm pitch)
Figure B-20 385ZWK
Package Outline (12 x 12mm, 0.5mm pitch)

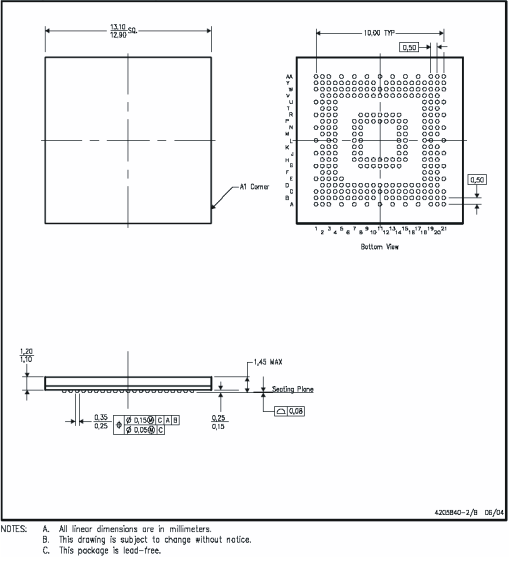

Figure B-21 289ZWE
Package Outline (13 x 13mm, 0.5mm pitch)

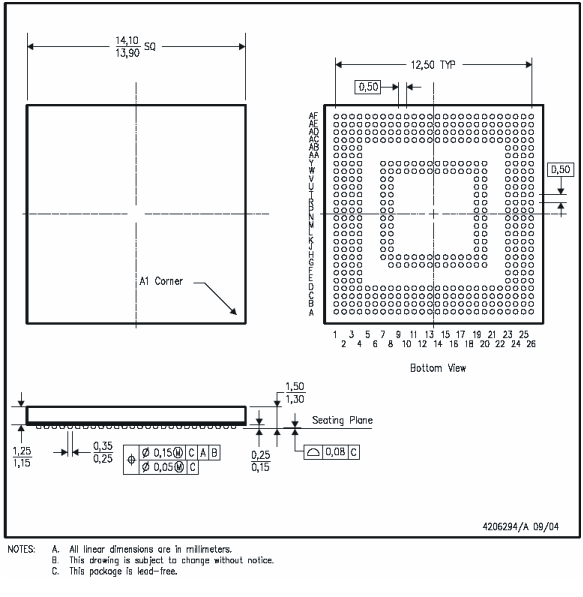

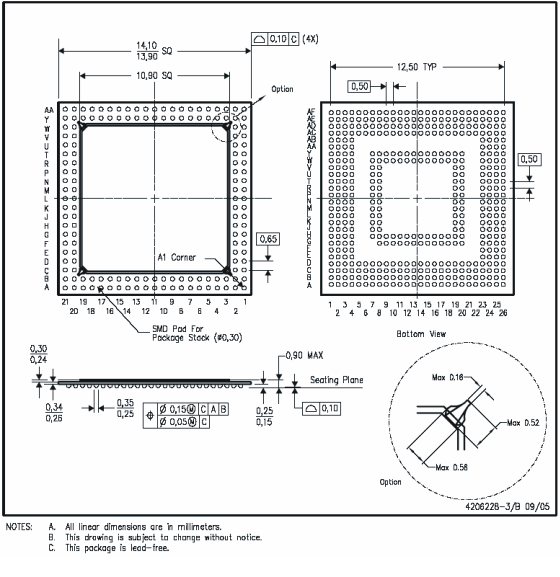

Figure B-22 447ZAC
Package Outline (14 x 14mm, 0.5mm pitch)
Figure B-23 447ZAF
Package Outline (14 x 14mm, 0.5mm pitch)

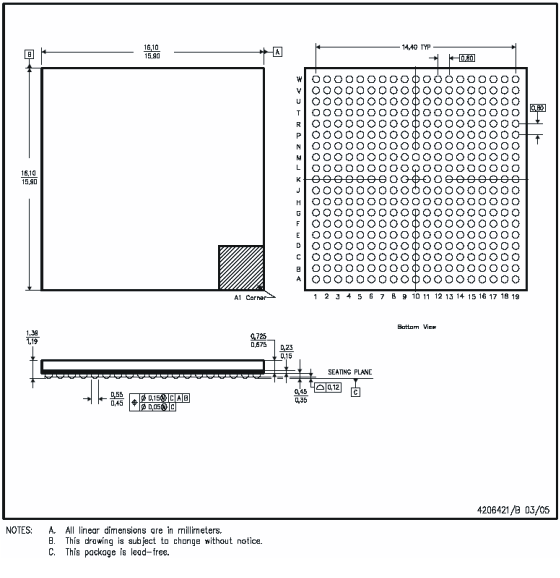

Figure B-24 361ZWT
Package Outline (16 x 16mm, 0.8mm pitch)

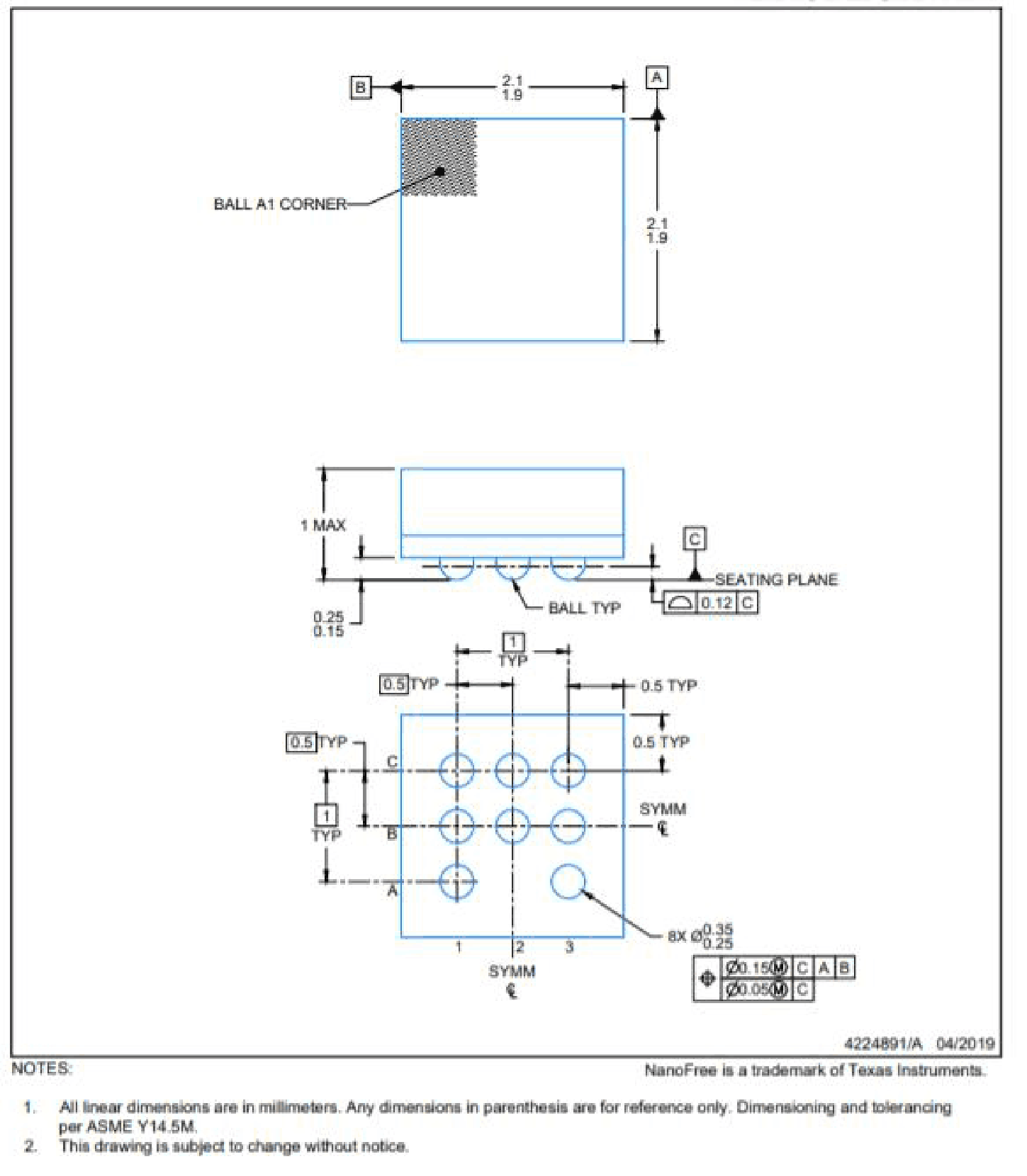

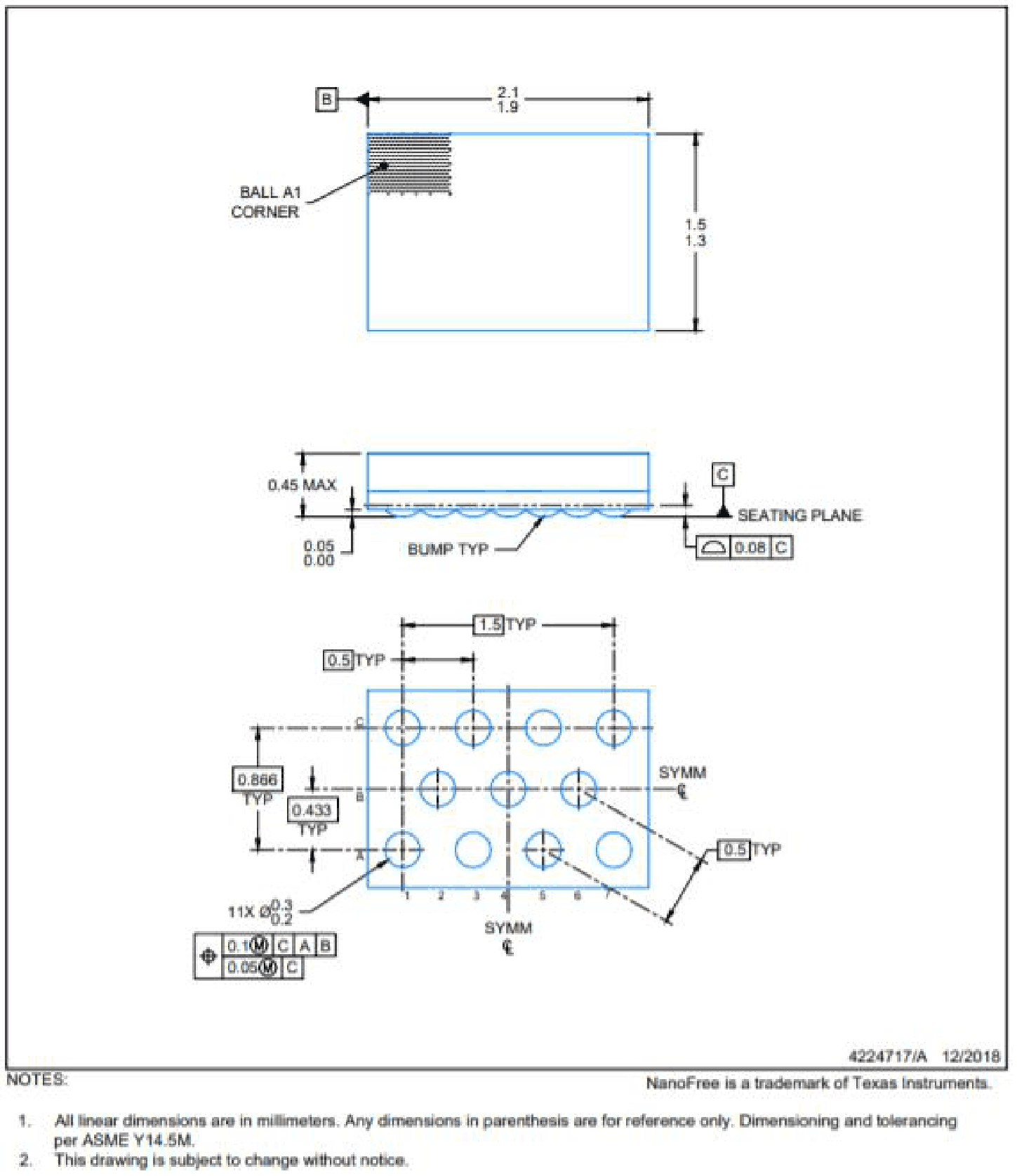

Figure B-25 11ZWA Package Outline (2 x 1.4mm, 0.5mm pitch)

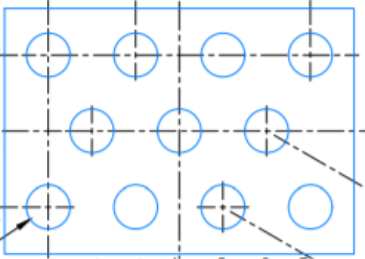

Figure B-26 8 NMB Package Outline (2 x 2mm, 0.5mm pitch)

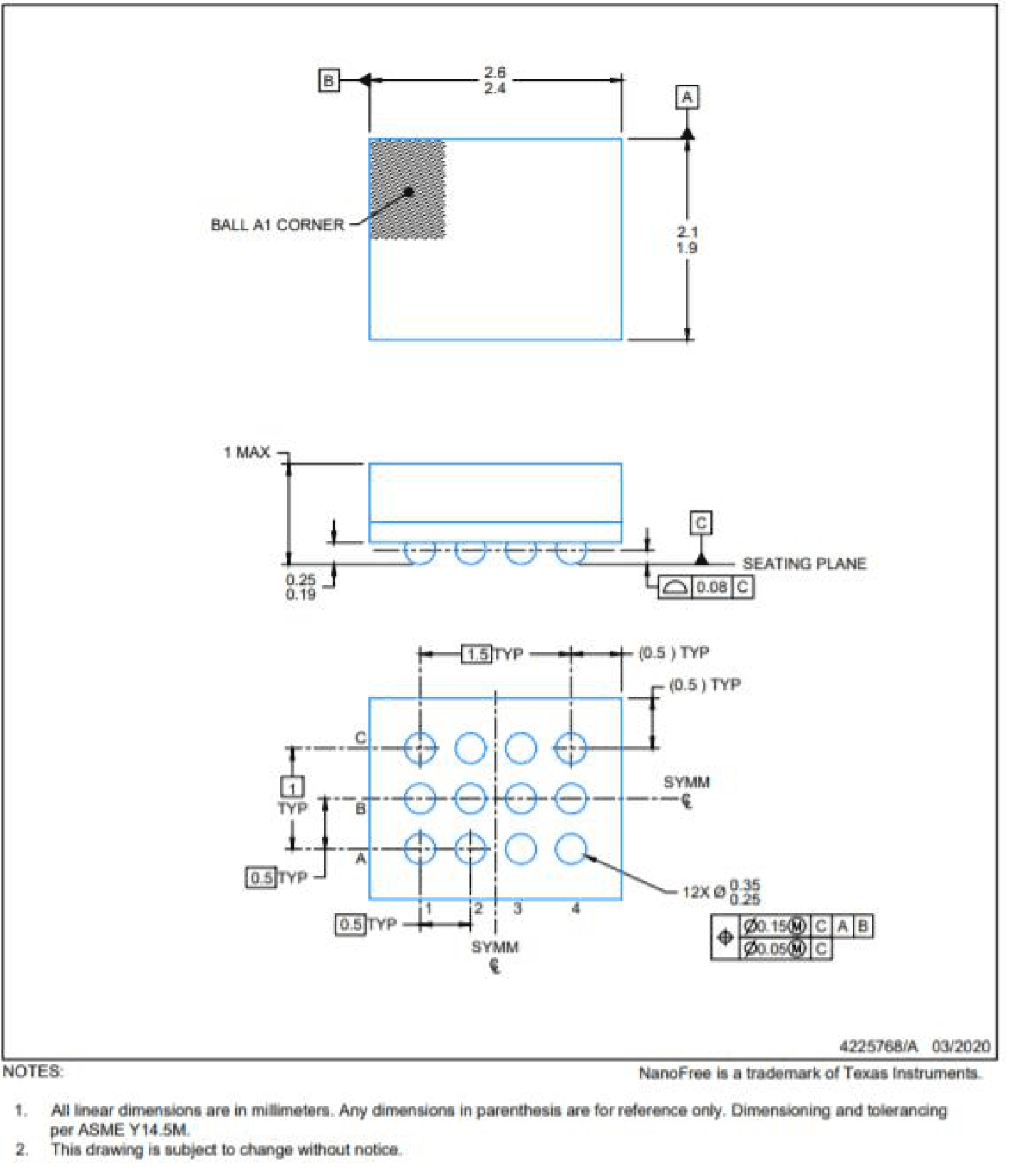

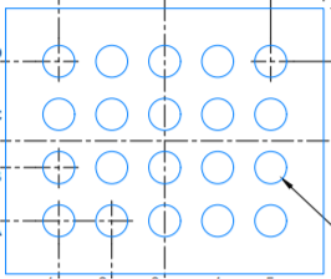

Figure B-27 12NMN Package Outline (2 x 2.5mm, 0.5mm pitch)

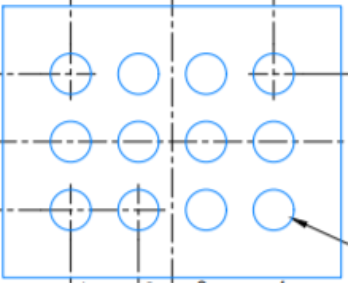

Figure B-28 20NME Package Outline (2.5 x 3 mm, 0.5mm pitch)

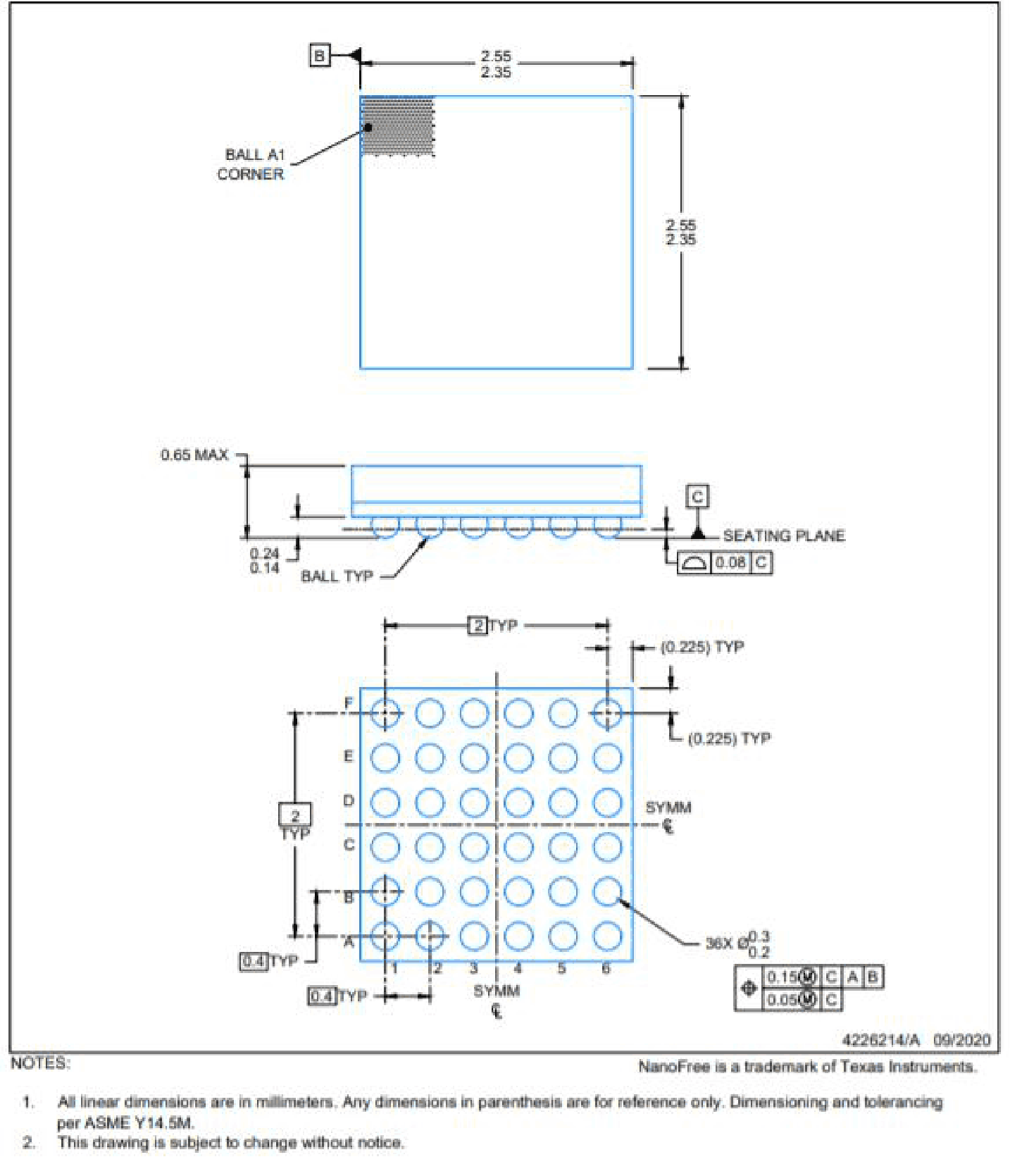

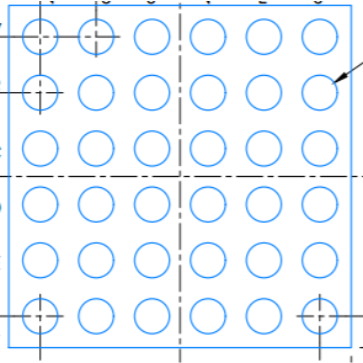

Figure B-29 36ZEC Package Outline (2.45 x 2.45 mm, 0.4mm pitch)
