2.2 Conductor Width/Spacing
Figure 2-4 presents some design considerations based on commonly used PCB design rules. Conventionally, the pads are connected by wide copper traces to other devices or to plated through holes (PTH). As a rule, the mounting pads must be isolated from the PTH. Placing the PTH interstitially to the land pads often achieves this.

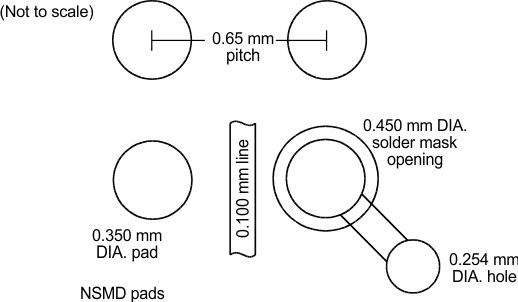

Figure 2-4 PCB
Design Considerations (Conventional)
