6.3 Using the Input Page
The Input page provides a high-level view of all the inputs for the device, the APLL frequencies, and DPLL frequencies of the device.
When the DPLL dividers and loop filter are calculated by running the script in step 7 on the Start page, this page displays the DPLL divider values which set the DPLL frequency. This example shows that the DPLL frequency is the exact desired frequency.
Each DPLL supports two sets of DPLL dividers which can be selected. At this time, the tool calculates the divider for FB Config 1 only. To use two different feedback dividers, the following procedure should be preformed.
- Div #1 settings may be copied into Div #2 settings and selected for use by the DPLL Div Select control.
- The references that require the Div #2 settings should be set to FB Config 2.
- You can run a second calculation (re-perform a run script, step 7 on Start page, of the DPLL), which will repopulate Div #1 settings with the new values for FB Config 1.
- Div #2 settings will remain the same as the ones initial copied over in step 1.
When using both feedback dividers, it is not required that the TDC rates are exactly the same, only that they are within ±5% for the two DPLL feedback configurations.

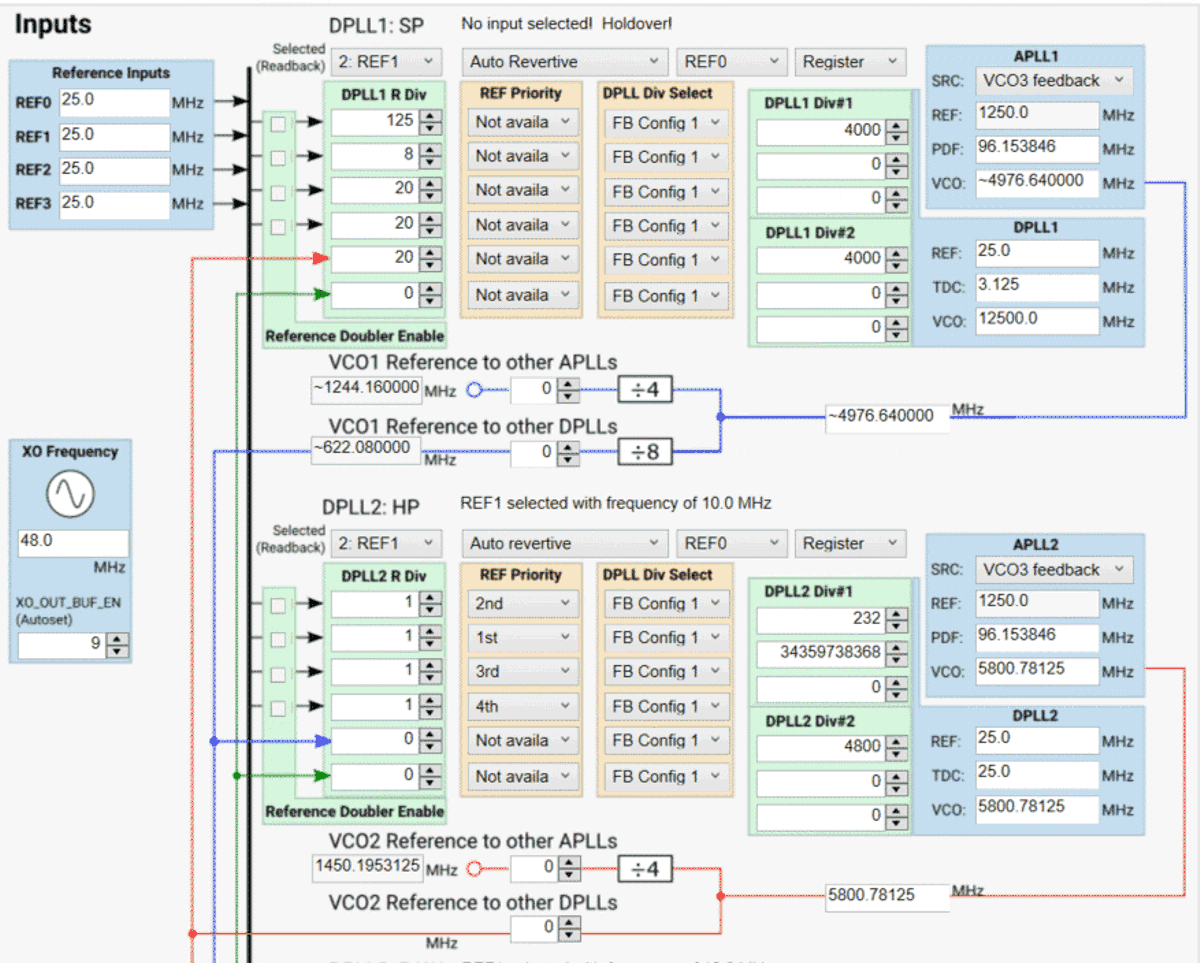

Figure 6-9 APLL or DPLL Frequency Selection.

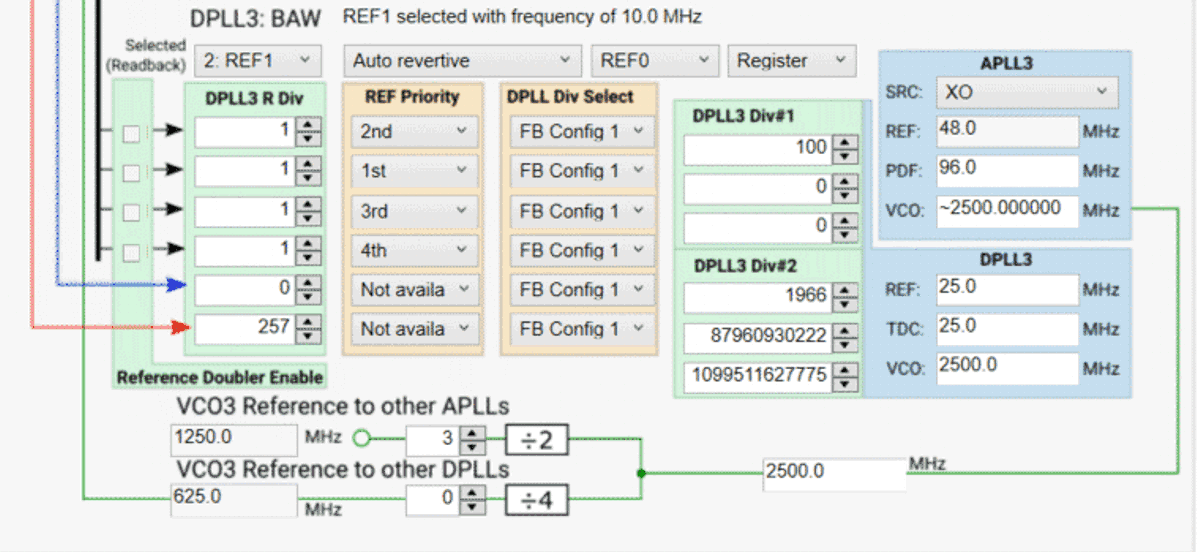

Figure 6-10 PLL3 Input.
