These plots show the typical phase noise performance for common frequencies outputted from the BAW (VCO3).
The EVM configuration used to obtain these measurements is as follows:
Figure 3-12 APLL3 312.5-MHz Phase Noise Performance.

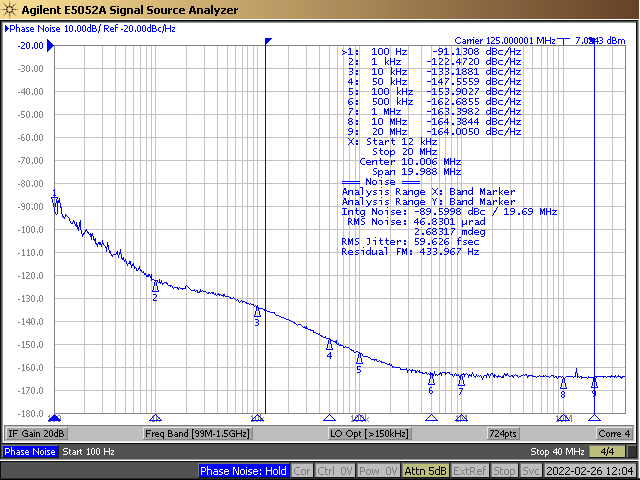

Figure 3-14 APLL3 125-MHz Phase Noise Performance.
Figure 3-13 APLL3 156.25-MHz Phase Noise Performance.

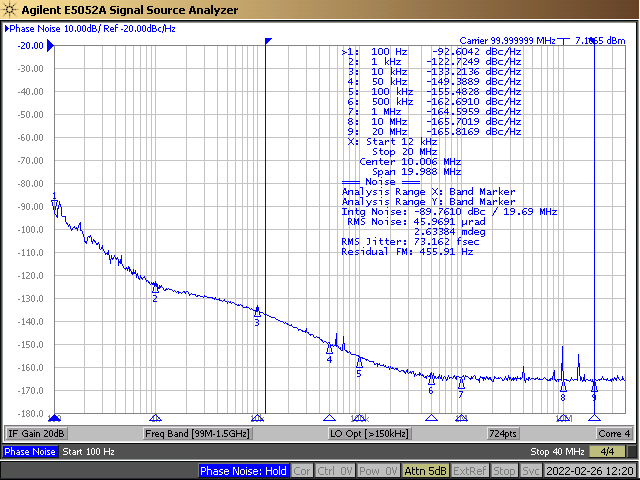

Figure 3-15 APLL3 100-MHz Phase Noise Performance.
