SNAU279A July 2022 – September 2022
The Validation page allows you to enable/disable different detectors for reference validation along with DPLL frequency and phase lock requirements. Press the Reassign All button at the top of the page to recalculate the validation values.

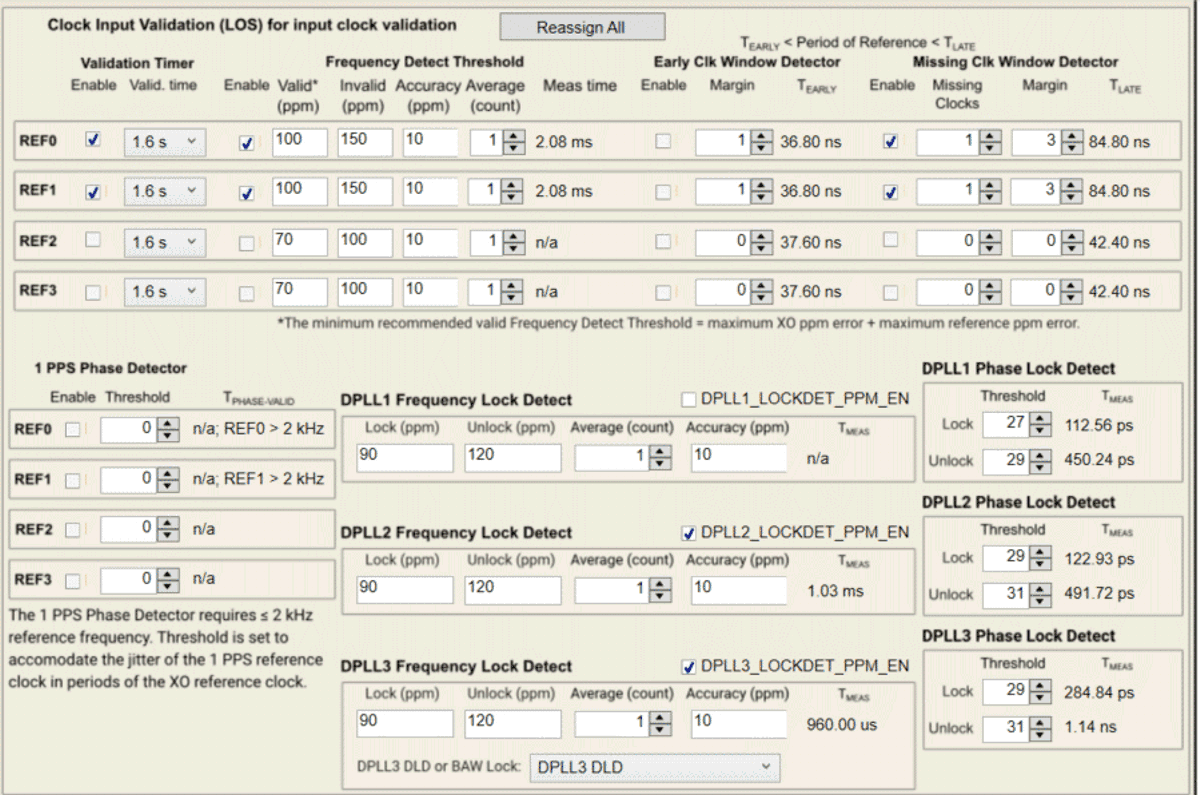

Figure 6-19 Validation Page.
