7.5.1 DESAT Protection with Soft Turn-OFF
DESAT function is used to detect VDS for SiC-MOSFETs or VCE for IGBTs under over current conditions. Figure 7-10 shows the timing diagram of DESAT operation with soft turn-off during the turning on transition.

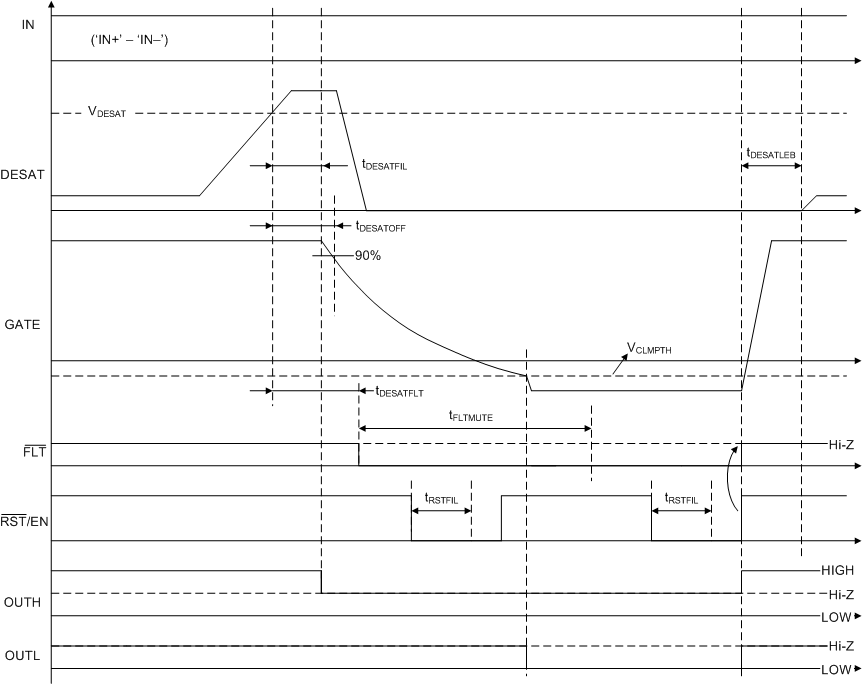

Figure 7-10 DESAT
Protection With Soft Turn-OFF During Turn-ON TransitionFigure 7-11 shows the timing diagram of DESAT protection while the power device is already turned on.

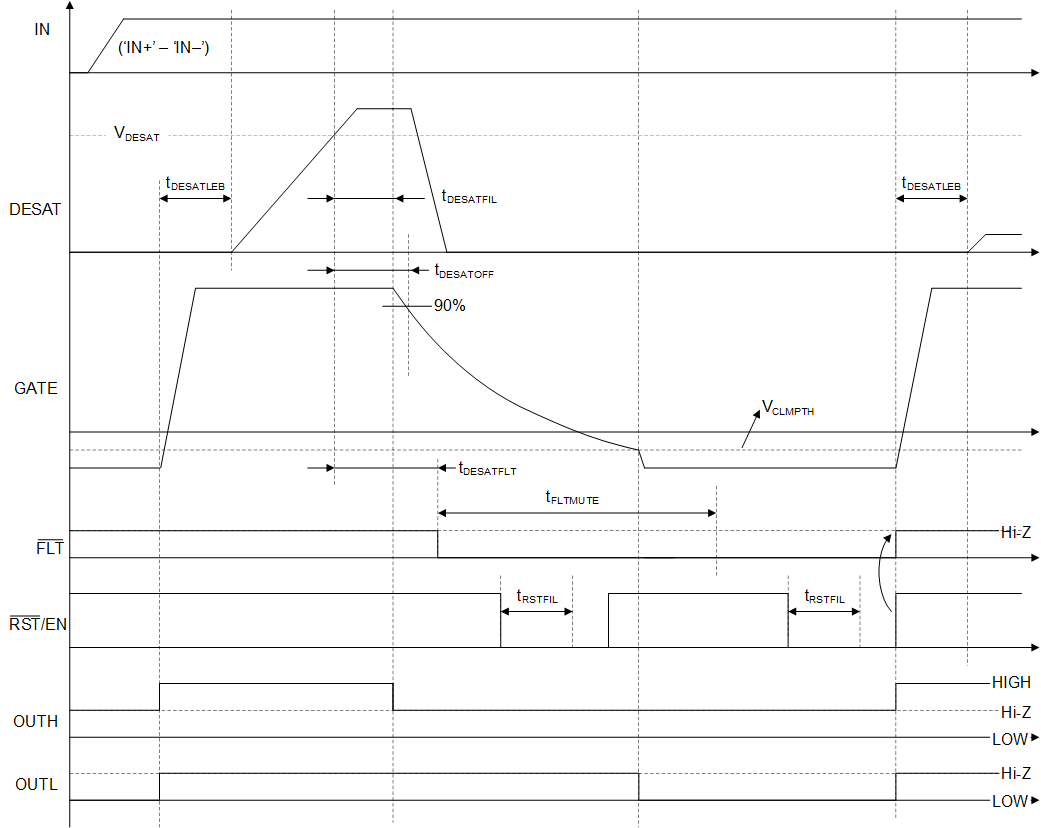

Figure 7-11 DESAT Protection With Soft Turn-OFF While Power
Device is ON
