7.1.1 Regular Turn-OFF
Figure 7-1 shows the propagation delay measurement for non-inverting configurations. Figure 7-2 shows the propagation delay measurement with the inverting configurations.

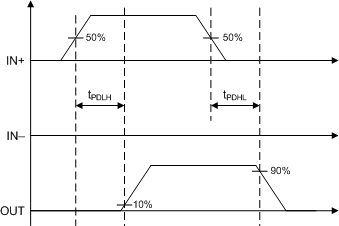

Figure 7-1 Non-inverting Logic Propagation Delay Measurement

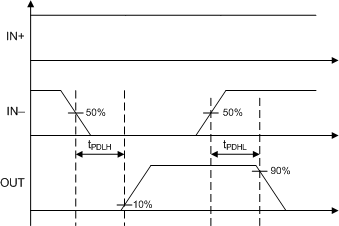

Figure 7-2 Inverting
Logic Propagation Delay Measurement
