6.4.2 VDD UVLO

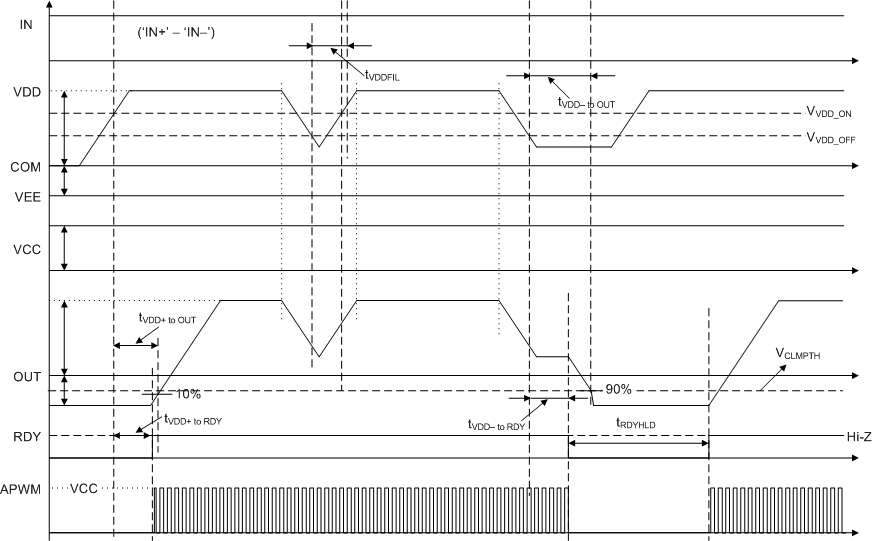

The VDD UVLO protection details are discussed in this section. Figure 6-9 shows the timing diagram illustrating the definition of UVLO ON/OFF threshold, deglitch filter, response time, RDY and AIN–APWM.
Figure 6-9 VDD UVLO
Protection Timing Diagram
