6.12 Typical Characteristics

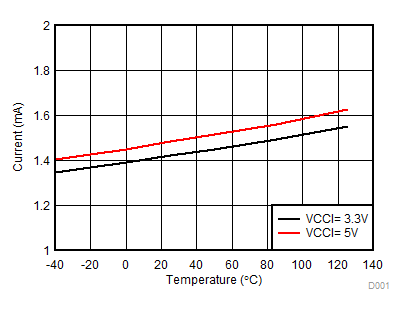

VDDA = VDDB= 12 V, VCCI = 3.3 V, TA = 25°C, No load unless otherwise noted.
| No load |
| CLOAD = 10 nF |
| No load | Input low | No switching |
| VDD = 12 V |
Figure 6-12 Propagation Delay vs. Temperature

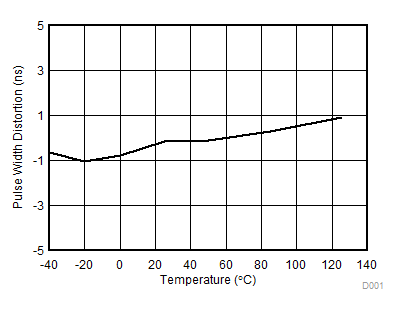

Figure 6-14 Pulse Width Distortion vs. Temperature
Figure 6-16 Propagation Delay Matching (tDM) vs. Temperature

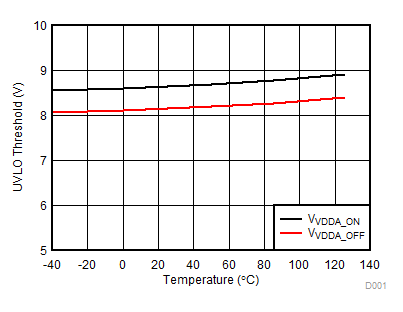

Figure 6-18 VDD UVLO Threshold vs. Temperature
Figure 6-20 PWM/DIS Low Threshold
Figure 6-22 Dead Time vs.
Temperature
Figure 6-24 Typical Output
Voltage
| CLOAD = 1 nF |
| No load |
| No load | DIS is high | No switching |
Figure 6-11 Output Resistance vs. Temperature
Figure 6-13 Propagation Delay vs. VCCI

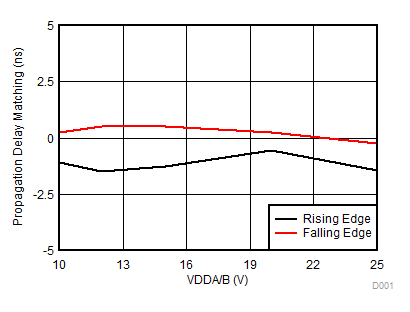

Figure 6-15 Propagation Delay Matching (tDM) vs. VDD

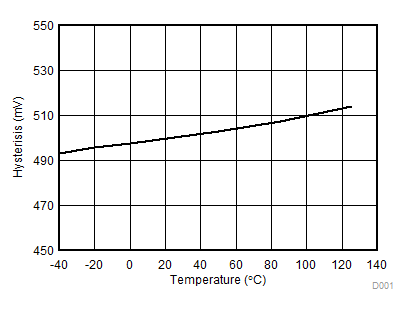

Figure 6-17 VDD UVLO Hysteresis vs. Temperature

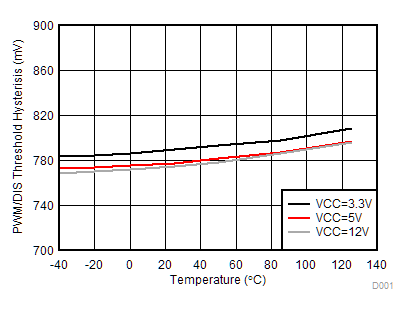

Figure 6-19 PWM/DIS Hysteresis vs. Temperature

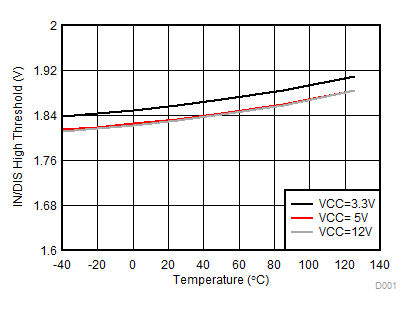

Figure 6-21 PWM/DIS High Threshold
Figure 6-23 Dead Time Matching vs.
Temperature
