7.1 Propagation Delay and Pulse Width Distortion
Figure 7-1 shows how one calculates pulse width distortion (tPWD) and delay matching (tDM) from the propagation delays of channels A and B. It can be measured by disabling the dead time function by shorting the DT Pin to VCC.

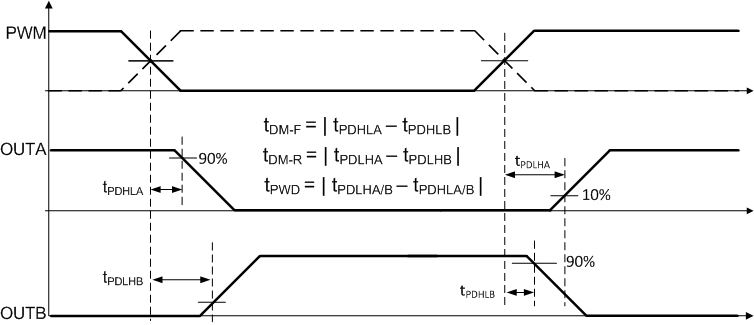

Figure 7-1 Propagation Delay Matching and Pulse Width Distortion
