8.3.5 Diode Structure in UCC20520

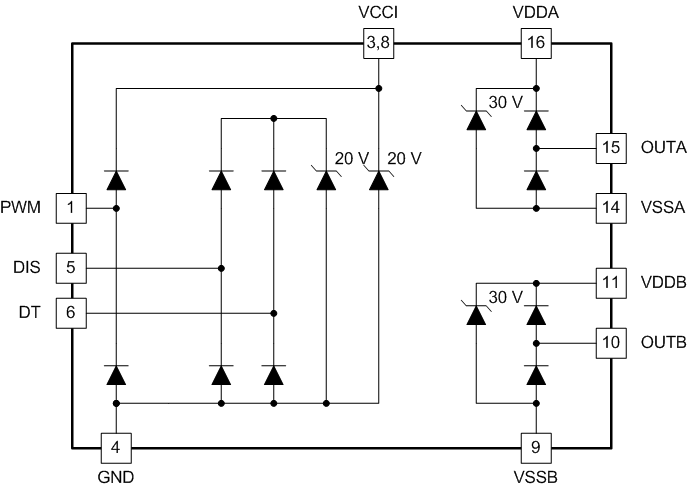

Figure 8-3 illustrates the multiple diodes involved in the ESD protection components of the UCC20520. This provides a pictorial representation of the absolute maximum rating for the device.
Figure 8-3 ESD Structure
