7.2.2.3 Downstream Port 2 Implementation
The downstream port 2 of the TUSB4041I-Q1 device is connected to a USB2 type A connector. With BATEN2 pin pulled up, battery charge support is enabled for port 2. If battery charge support is not needed, then uninstall the pullup resistor on BATEN2.

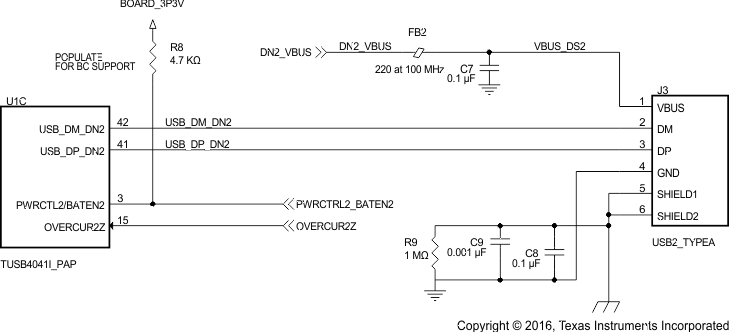

Figure 7-4 Downstream Port 2 Implementation
