7.2.3.1 MHL Eye Pattern

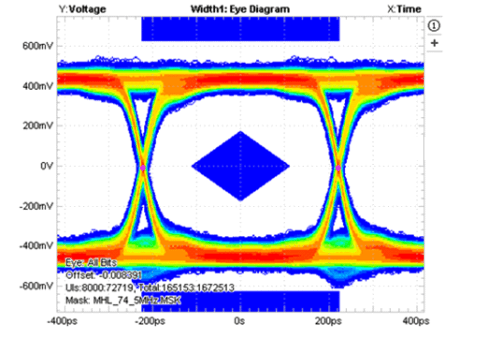

Figure 7-2 Eye Pattern Error Histogram: 2.25 Gbps With No Device

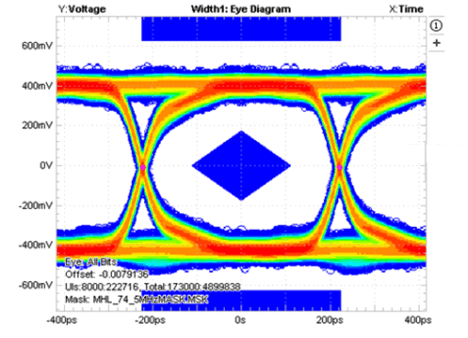

Figure 7-4 Eye Pattern Error Histogram: 2.25 Gbps With TS3USB3031 (Added Jitter = 5.04 ps)

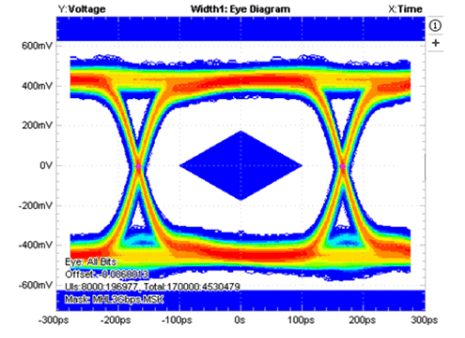

Figure 7-6 Eye Pattern Error Histogram: 3.0 Gbps With No Device

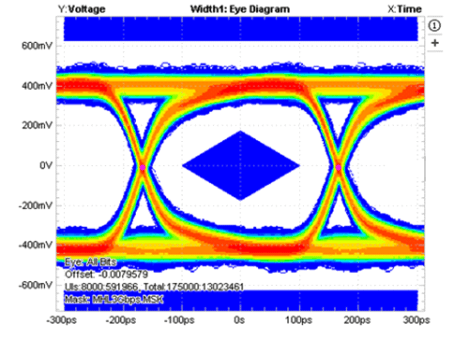

Figure 7-8 Eye Pattern Error Histogram: 3.0 Gbps With TS3USB3031 (Added Jitter = 2.57 ps)

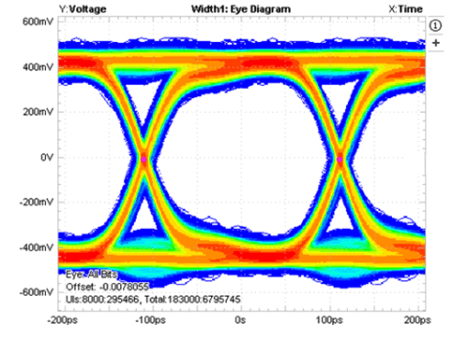

Figure 7-10 Eye Pattern Error Histogram: 4.5 Gbps With No Device

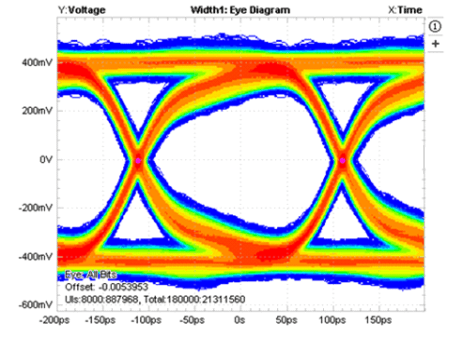

Figure 7-12 Eye Pattern Error Histogram: 4.5 Gbps With TS3USB3031 (Added Jitter = 1.13 ps)

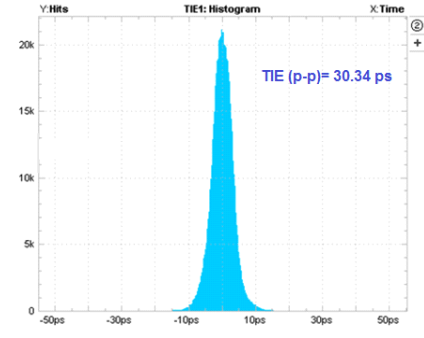

Figure 7-3 Time Interval Error Histogram: 2.25 Gbps With No Device

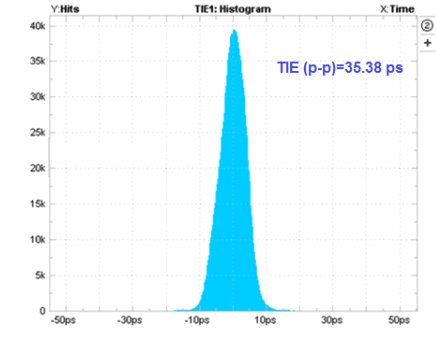

Figure 7-5 Time Interval Error Histogram: 2.25 Gbps With TS3USB3031 (Added Jitter = 5.04 ps)

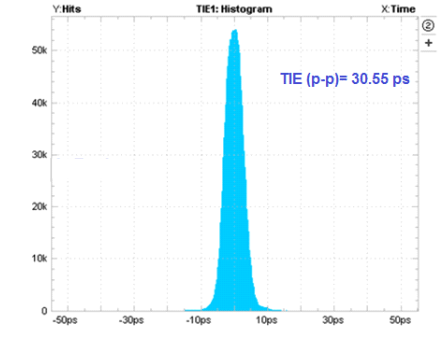

Figure 7-7 Time Interval Error Histogram: 3.0 Gbps With No Device
Figure 7-9 Time Interval Error Histogram: 3.0 Gbps With TS3USB3031 (Added Jitter = 2.57 ps)

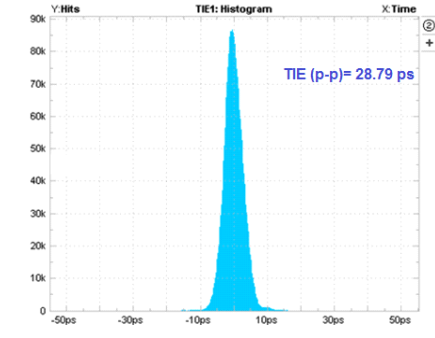

Figure 7-11 Time Interval Error Histogram: 4.5 Gbps With No Device

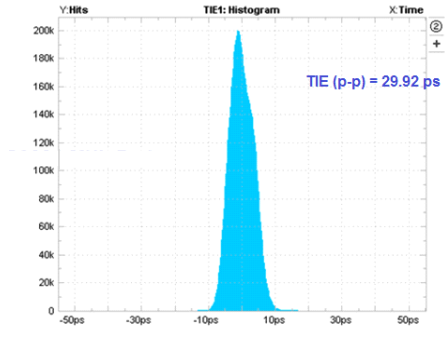

Figure 7-13 Time Interval Error Histogram: 4.5 Gbps With TS3USB3031 (Added Jitter = 1.13 ps)
