7.7 Typical Characteristics (VIN = 24 V)
TA = 25°C, unless otherwise noted.

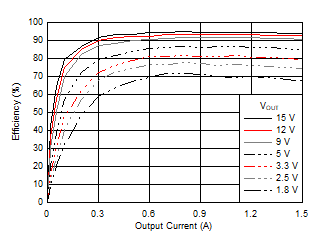

Figure 7-7 Efficiency
| COUT = 2 × 47-μF, 25-V, ceramic |
| Device soldered to a 63.5-mm × 82.5-mm, 4-layer PCB |
Figure 7-8 Power
Dissipation

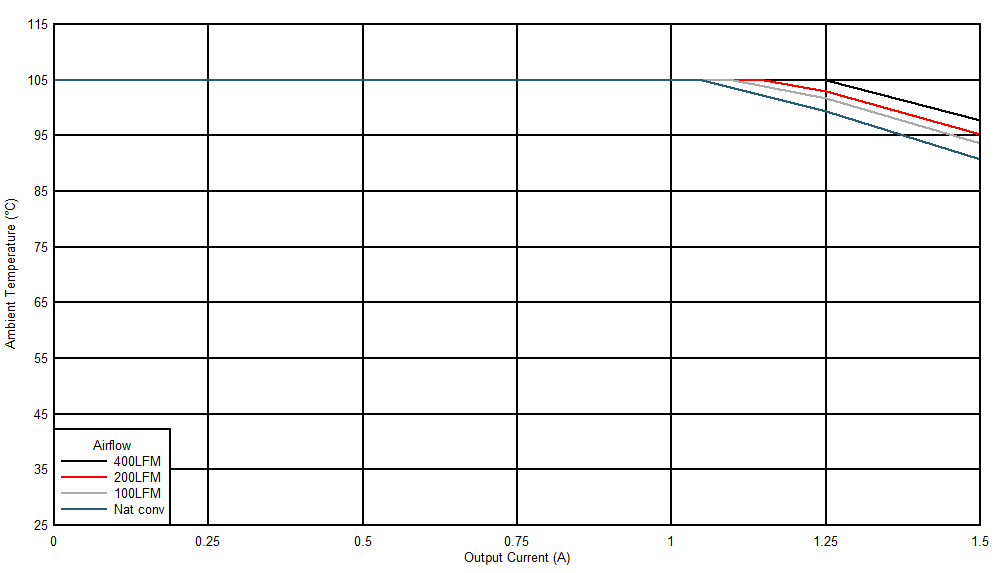

| Device soldered to a 63.5-mm × 82.5-mm, 4-layer PCB |

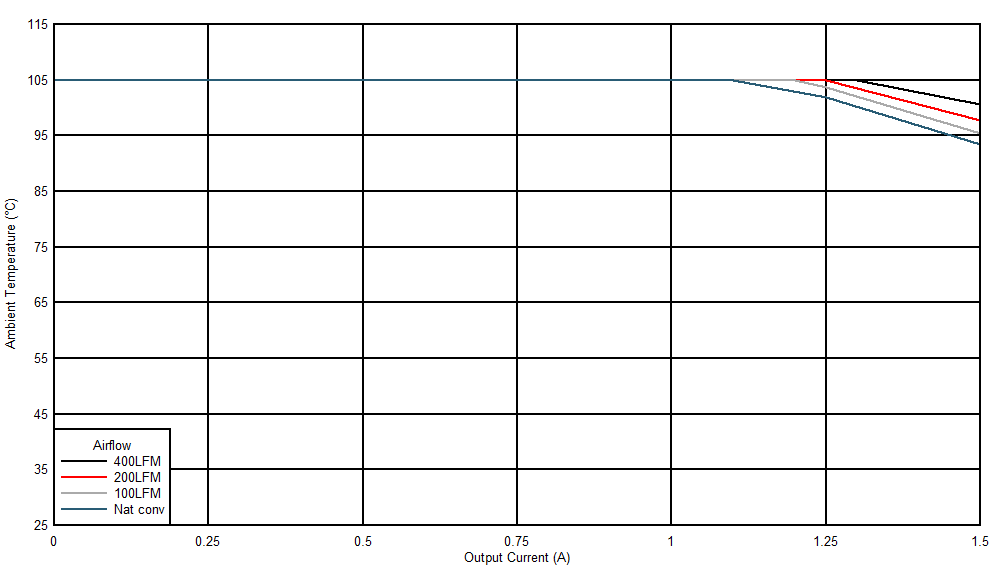

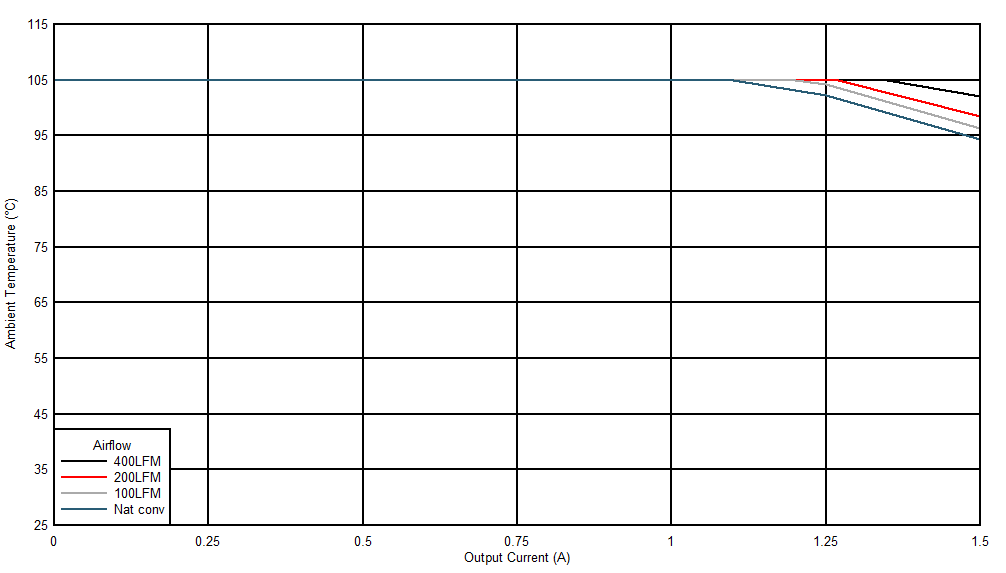

| Device soldered to a 63.5-mm × 82.5-mm, 4-layer PCB |
