7.9 Typical Characteristics (VIN = 60 V)
TA = 25°C, unless otherwise noted.

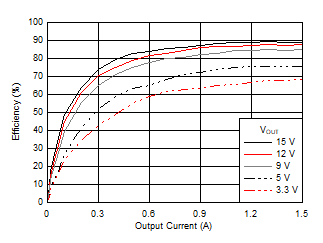

Figure 7-19 Efficiency

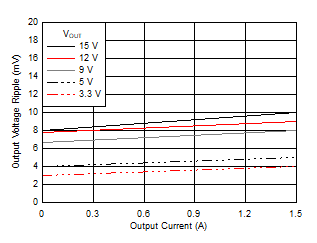

| COUT = 2 × 47-μF, 25-V, ceramic |
| Device soldered to a 63.5-mm × 82.5-mm, 4-layer PCB |

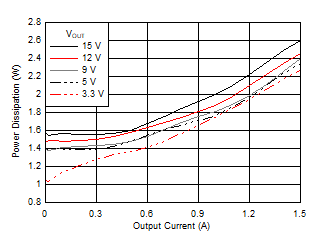

Figure 7-20 Power
Dissipation

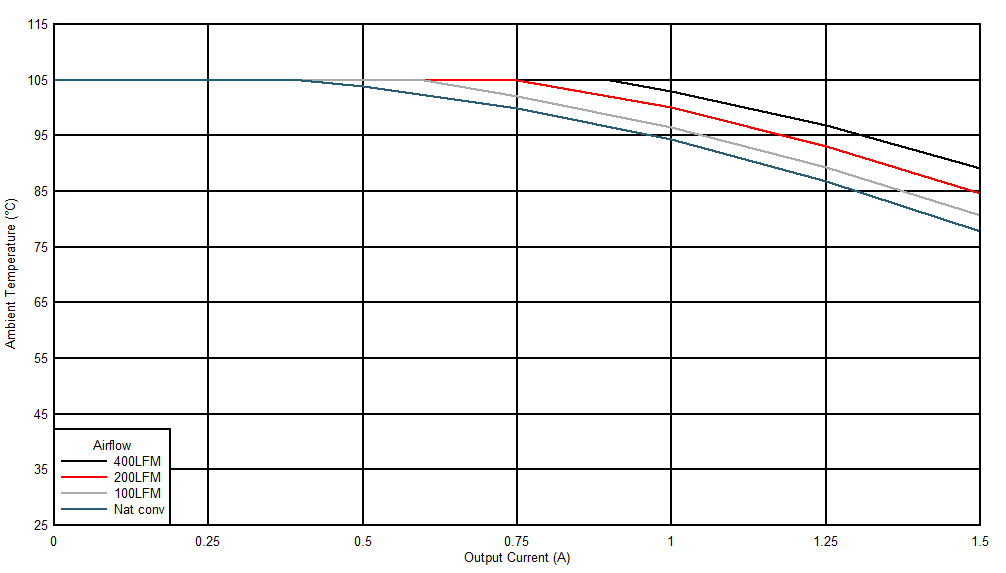

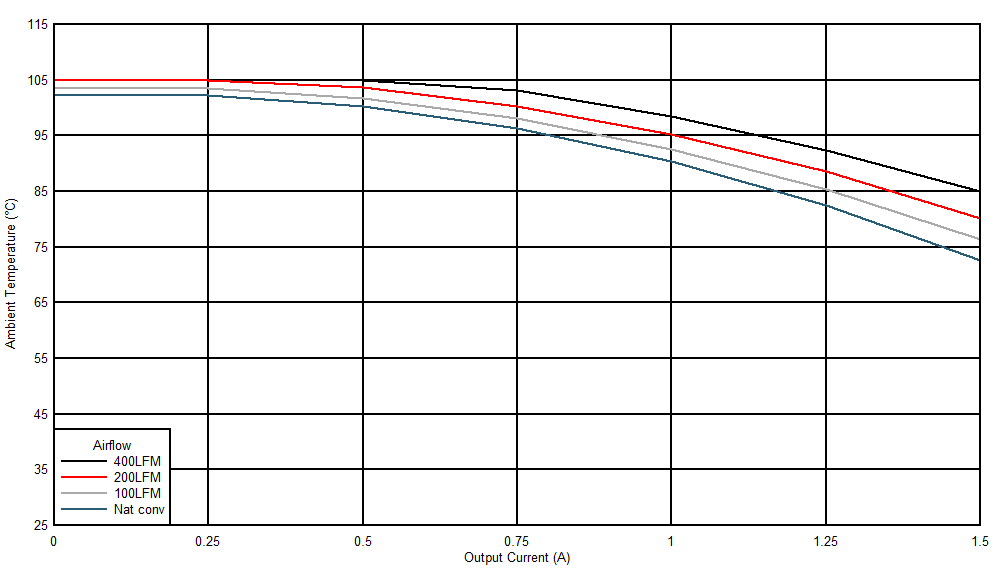

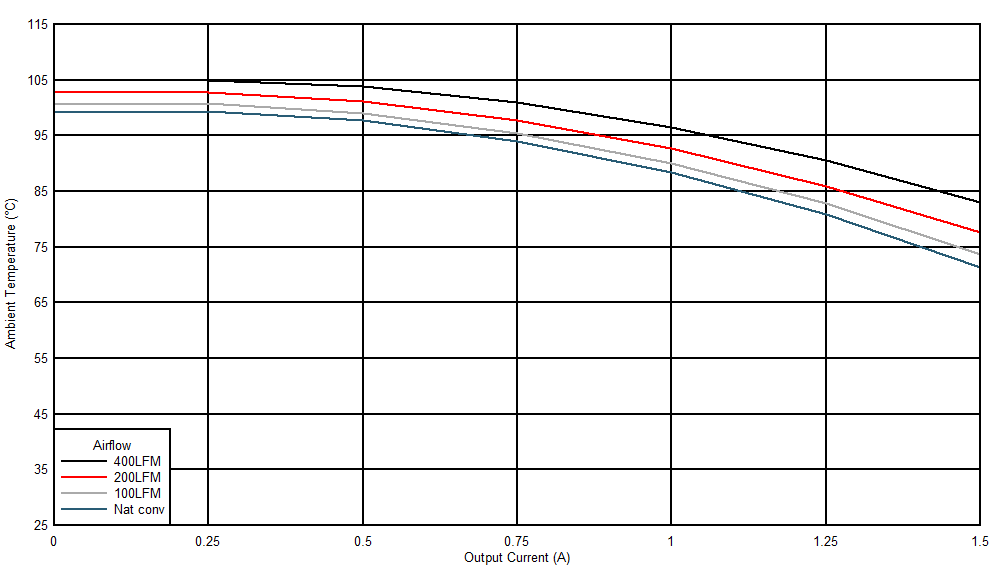

| Device soldered to a 63.5-mm × 82.5-mm, 4-layer PCB |
| Device soldered to a 63.5-mm × 82.5-mm, 4-layer PCB |
