9.2.3.9 Calculate UVLO Resistance Values
Consider the rising threshold of VIN to be 29 V and the hysteresis to be 4 V, calculate R2 and R3 to create the desired operation:
Equation 33.
Equation 34.

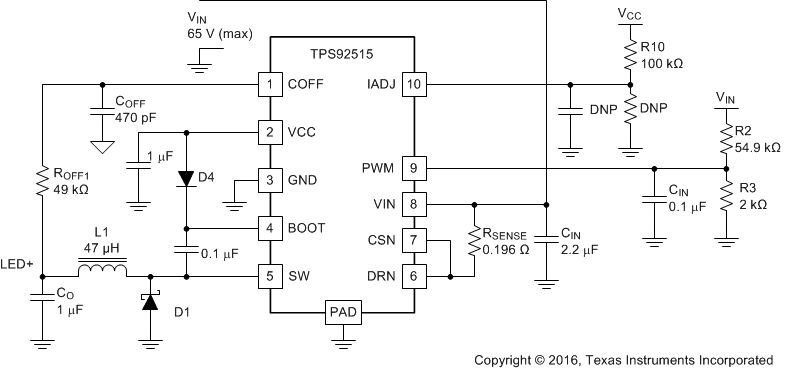

The final schematic is shown in Figure 33 and performance curves in the Application Curves section:
Figure 33. Application Schematic
