6 Pin Configuration and Functions

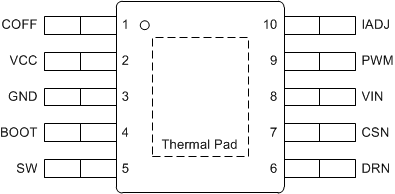

DGQ Package
HVSSOP 10-Pin with PowerPAD
Top View
Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| BOOT | 4 | I | Connect a ceramic capacitor between BOOT and SW and a diode from VCC to BOOT to power the high-side FET drive circuitry. |
| COFF | 1 | I | Connect a resistor from VOUT, and a capacitor to GND to set the OFF-time. |
| CSN | 7 | I | Current sense negative input. Connect current sense resistor from VIN to CSN for high-side current sense control. |
| DRN | 6 | I | Internal FET drain. Connect to CSN node |
| GND | 3 | G | Ground |
| IADJ | 10 | I | Output current adjust. Connect to an external divider, reference or tie to VCC. |
| PWM | 9 | I | PWM dimming input. Connect to PWM control signal. Output current is pulse-width modulated (PWM) dimmed from the maximum analog controlled level. Connect to VCC if not used. |
| SW | 5 | O | Internal FET Source. Connect to output inductor |
| VCC | 2 | O | 5-V Regulator Output. Use a decoupling capacitor from VCC to ground. See section on VCC capacitor selection. |
| VIN | 8 | I | Connect to input voltage. VIN is also the current sense positive input. |
| Thermal pad | — | Connect to ground | |
