7.3.1 Fault Detection and Protection
The device includes both analog current sense and digital fault pins for full diagnostics of different fault conditions.
The current-sense voltage scale is selected based on the output-current range of interest. Figure 19 shows a recommended setting that allows for full diagnostics of each fault. Before the device goes into current-limit mode, the output current-sense voltage is linearly proportional to the actual load current. During a thermal-shutdown (TSD) and short-to-battery (STB) condition, the current-sense voltage is set to the fault voltage level that is specified in the Electrical Characteristics table.

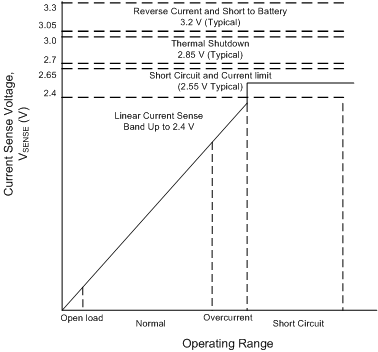

Figure 19. Functionality of the Current-Sense Output
