3 說明
TPS65983B 是一款高度集成的獨立式 USB Type-C 和電力傳輸 (PD) 控制器，針對筆記本電腦應用進行了優(yōu)化。TPS65983B 集成了全面管理的電源路徑與強大的保護功能，可提供完整的 USB-C PD 解決方案。TPS65983B 包括一個高速多路復用器，該多路復用器取決于 CC 引腳提供的 USB Type-C 電纜方向。多路復用器會傳遞用于交替模式的邊帶使用數據。TPS65983B 具有 BGA MicroStar Junior 封裝，帶有 0.5mm 間距和穿孔，可兼容所有引腳。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| TPS65983B | BGA MicroStar Junior (96) | 6.00mm × 6.00mm |
| NFBGA (96) |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

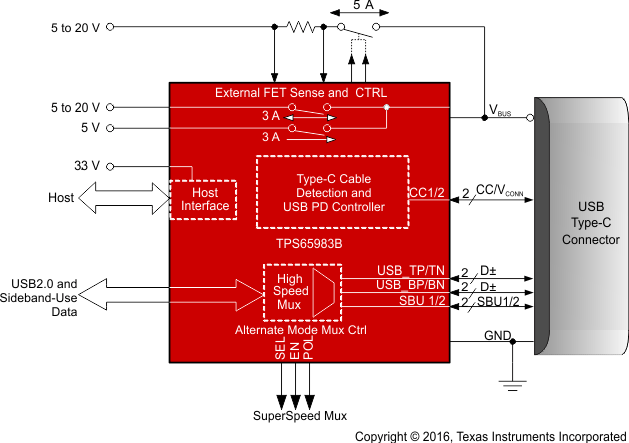

簡化版圖表
