9.3.1.1 USB-PD Encoding and Signaling
Figure 9-2 shows the high-level block diagram of the baseband USB-PD transmitter. Figure 9-3 shows the high-level block diagram of the baseband USB-PD receiver.

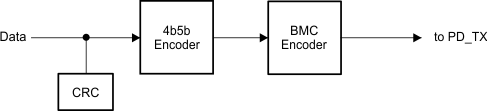

Figure 9-2 USB-PD Baseband Transmitter Block Diagram

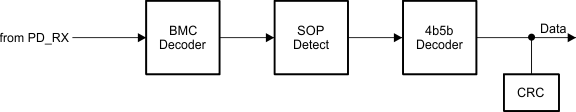

Figure 9-3 USB-PD Baseband Receiver Block DiagramThe USB-PD baseband signal is driven on the C_CCn pins with a tri-state driver. The tri-state driver is slew-rate limited to reduce the high-frequency components imparted on the cable and to avoid interference with frequencies used for communication.
