9.2.3 Application Curves

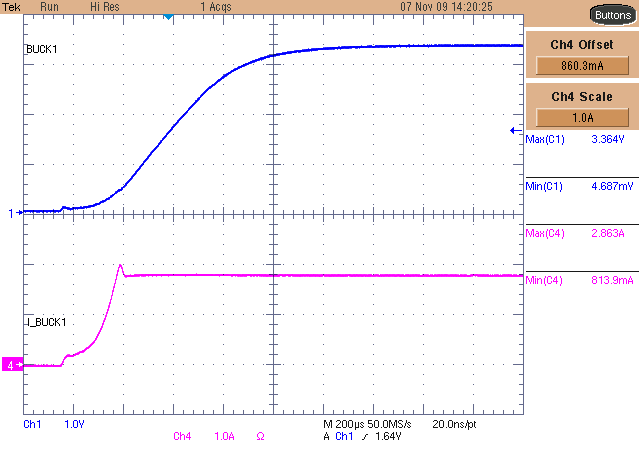

Figure 23. BUCK1 Start-Up
LO = 4.7 µH, CO = 22 µF, VOUT = 3.3 V, 2 A

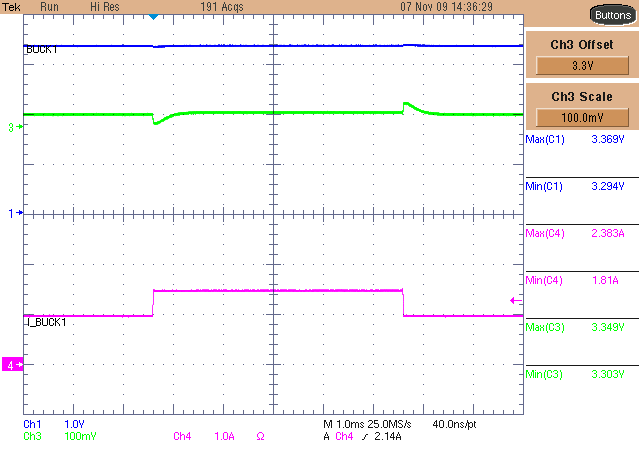

Figure 25. BUCK1 Transient Load Response
LO = 4.7 µH, CO = 22 µF, VOUT = 3.3 V, ?I = 1 A to 1.5 A, 100 mV/div

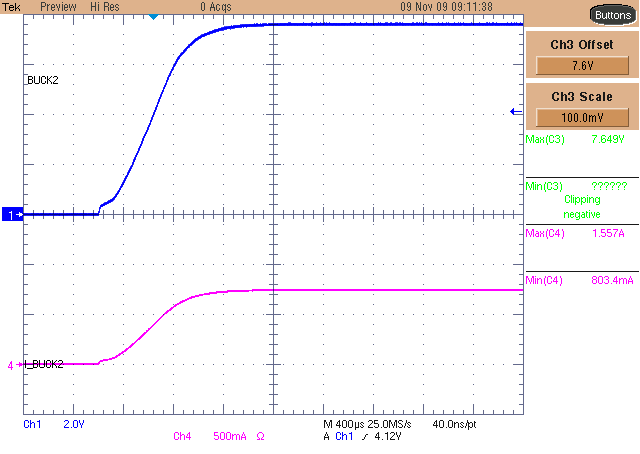

Figure 27. BUCK2 Start-Up
LO = 4.7 µH, CO = 22 µF, VOUT = 2.5 V, 1.5 A

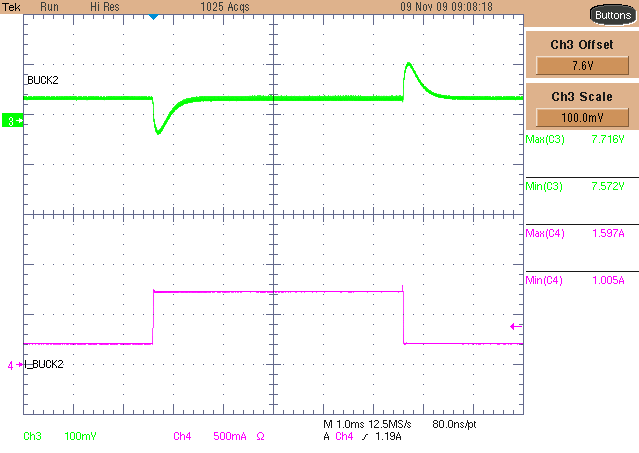

Figure 29. BUCK2 Transient Load Response
LO = 4.7 µH, CO = 22 µF, VOUT = 2.5 V, ?I = 1 A to 1.5 A

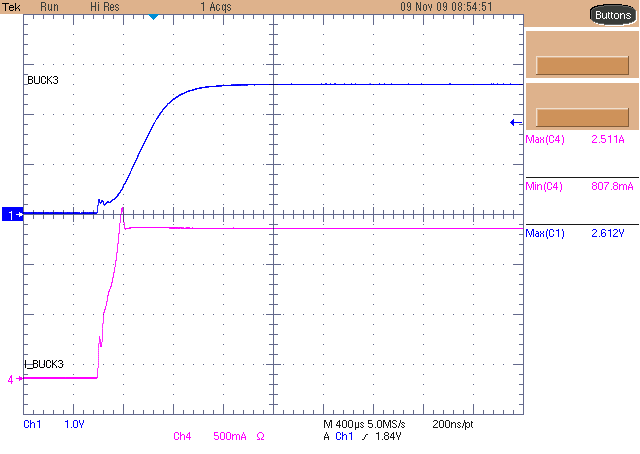

Figure 31. BUCK3 Start-Up
VOUT = 7.5 V, 0.7 A

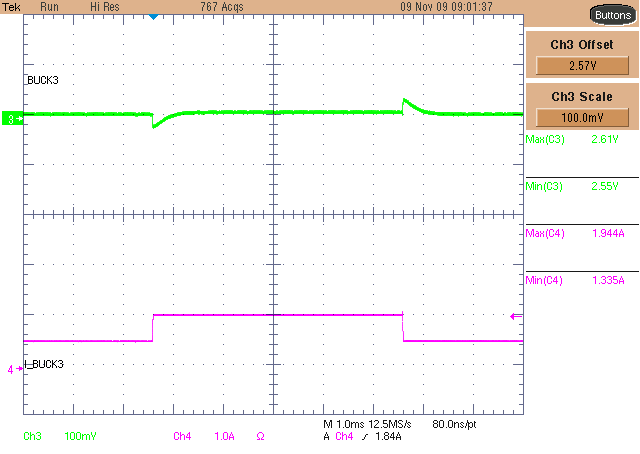

Figure 33. BUCK3 Transient Load Response
LO = 4.7 µH, CO = 22 µF, VOUT = 7.5 V, ?I = 1 A to 1.5 A

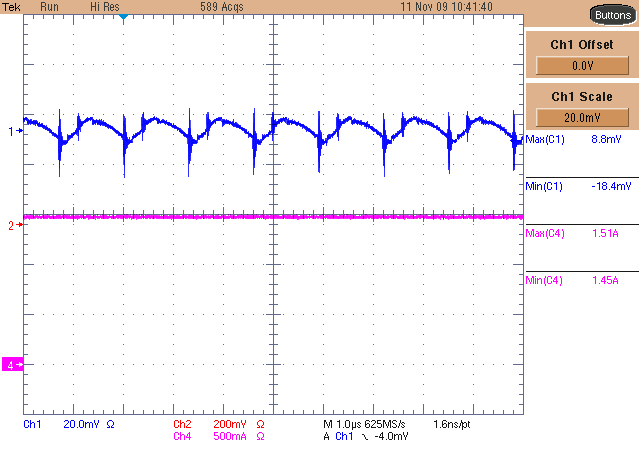

Figure 24. BUCK1 Ripple
VOUT = 3.3 V, 1.5 A, fSW = 800 kHz, 20 mV/div

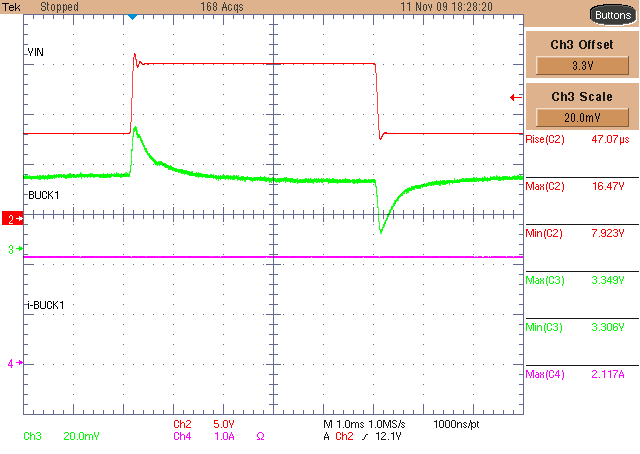

Figure 26. BUCK1 Transient Supply Response
LO = 4.7 µH, CO = 22 µF, VOUT = 3.3 V, ?VIN = 8 V to 16.5 V, 20 mV/div
VOUT = 2.5 V, 1.5 A, fSW = 800 kHz, 10 mV/div

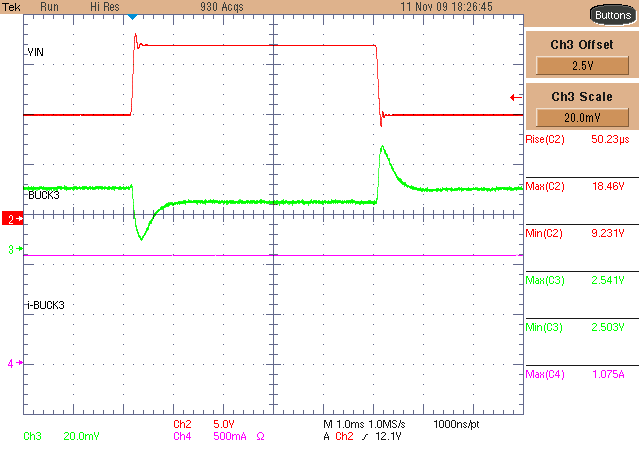

Figure 30. BUCK2 Transient Supply Response
LO = 4.7 µH, CO = 22 µF, VOUT = 2.5 V, ?VIN = 9 V to 8 V

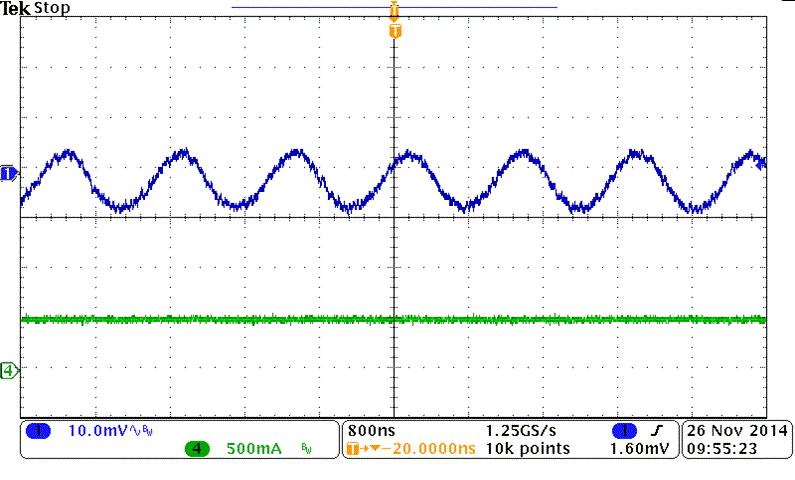

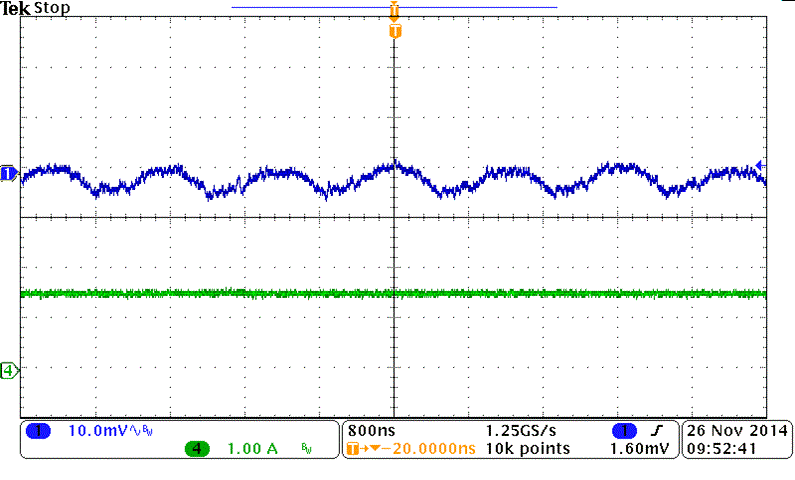

Figure 32. BUCK3 Ripple
VOUT = 7.5 V, 0.5 A, fSW = 800 kHz 10 mV/div
Figure 34. BUCK3 Transient Supply Response
VOUT = 2.5 V, ?VIN = 9 V to 8 V
