7.6 Typical Characteristics

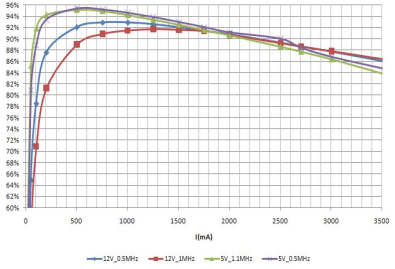

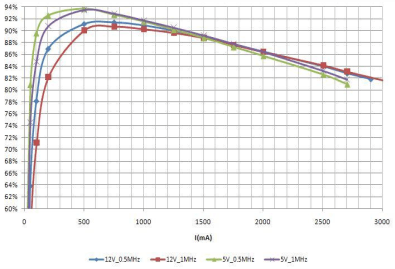

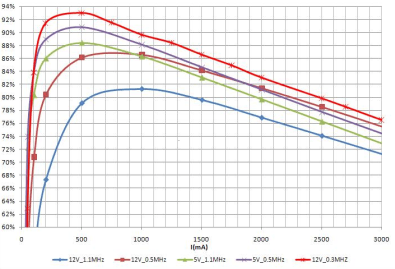

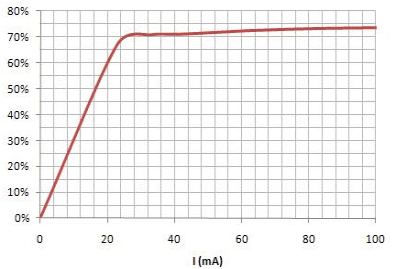

TA = 25°C, VIN = 12 V, fSW = 500 kHz (unless otherwise noted)

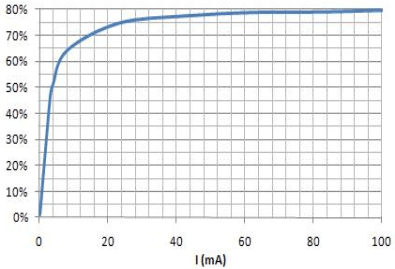

| fSW = 500 kHz, VOUT = 3.3 V, L= 4.7 µH, DCR = 28 mΩ | ||

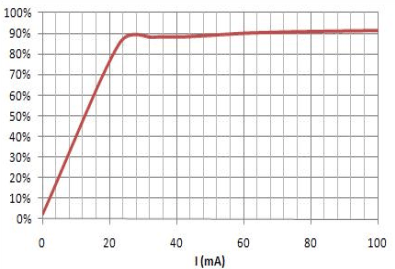

| CO = 22 µF, VOUT = 3.3 V, L = 4.7 µH | ||

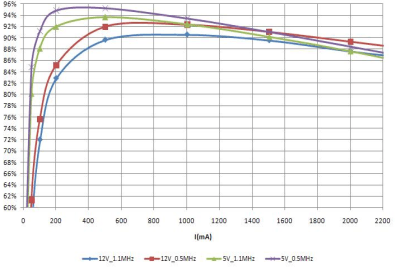

| fSW = 500 kHz, VOUT = 1.8 V, L = 4.7 µH, DCR = 28 mΩ | ||
| (Also Applies to Buck 3) |

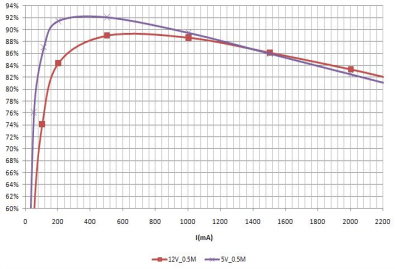

| VOUT = 2.5 V, L = 4.7 µH, DCR = 28 mΩ | ||
| (Also Applies to Buck 2) |

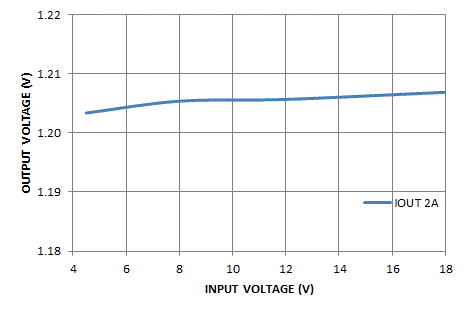

Figure 9. BUCK1 Line Regulation

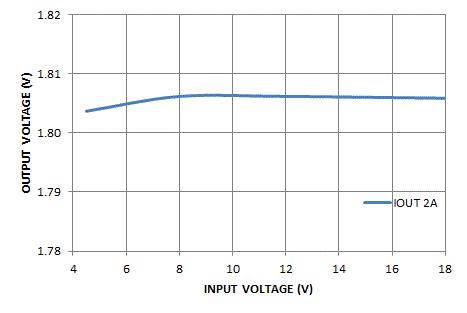

Figure 11. BUCK2 Line Regulation

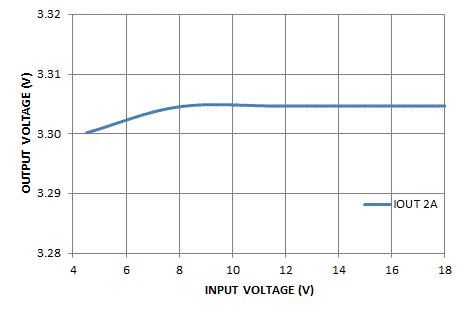

Figure 13. BUCK3 Line Regulation
| fSW = 500 kHz, VOUT = 1.2 V, L = 4.7 µH, DCR = 28 mΩ | ||
| fSW = 500 kHz, VOUT = 3.3 V, L = 4.7 µH, DCR = 28 mΩ | ||
| (Also Applies to Buck 3) |
| VOUT = 2.5 V, L = 4.7 µF | ||
| VOUT = 2.5 V, L = 4.7 µF | ||

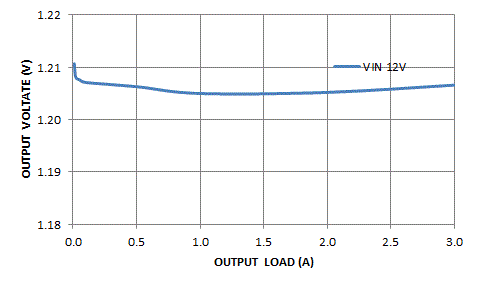

Figure 10. BUCK1 Load Regulation

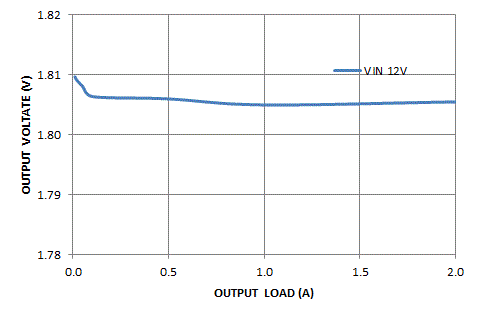

Figure 12. BUCK2 Load Regulation

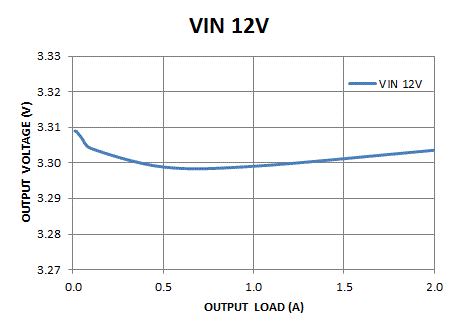

Figure 14. BUCK3 Load Regulation
